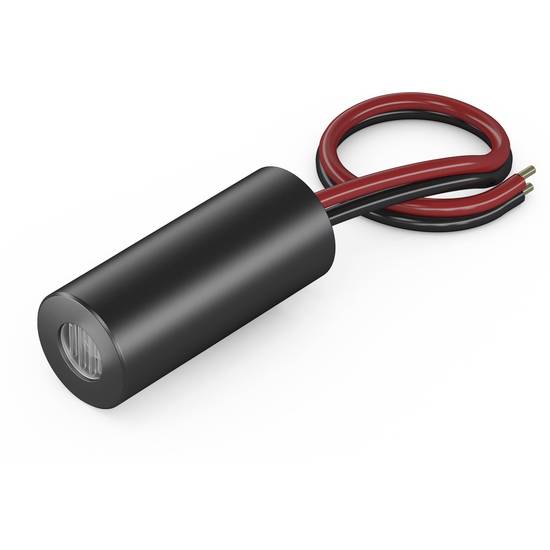

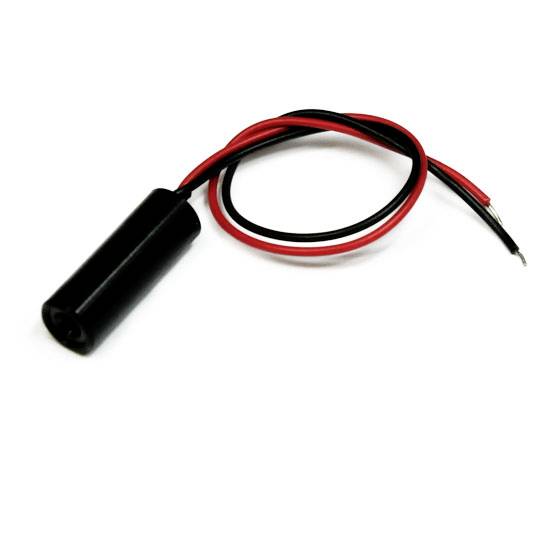

Picotronic Plumb dot laser Dot 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
980 nm
Power
1 mW
(Ø)
8 mm
Highlights & Details
Point laser module, infrared, 980nm, 1mW, 3V DC, 8x25 mm, class 1
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 1 laser
- Divergence C - 0.4 mrad
- 30 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 4 mm
- Black enclosure
- Beam diameter 4 mm
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
collimated
- Wavelength
980 nm
1 mW
- (Ø)
8 mm
- Length
25 mm
- Laser category
1
- Beam divergence
0.4 mrad
- Clearance
30 m
- Operating voltage
3 V DC
- Operating current
15 mA
- Material
Aluminium
- Dim
(Ø x L) 8 mm x 25 mm
- Weight
4 g
- RoHS-compliant
Yes
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987541 Picotronic Plumb dot laser Dot 1 mW
Information
Information 2987541 Picotronic Plumb dot laser Dot 1 mW
Conformity certificate
Conformity certificate 2987541 Picotronic Plumb dot laser Dot 1 mW
Description
Features
- Point laser module, infrared, 980nm, 1mW, 3V DC, 8x25 mm, class 1
- Laser Class 1
- Operating voltage: 3 V DC
- Compact design
- Anti-reflex coated glass lenses
- Preset focus
