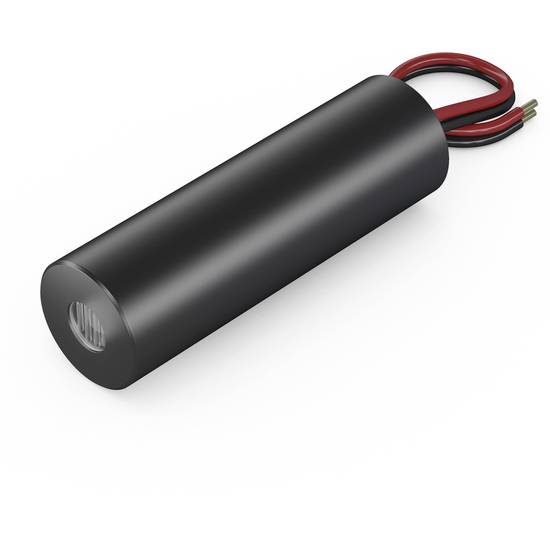

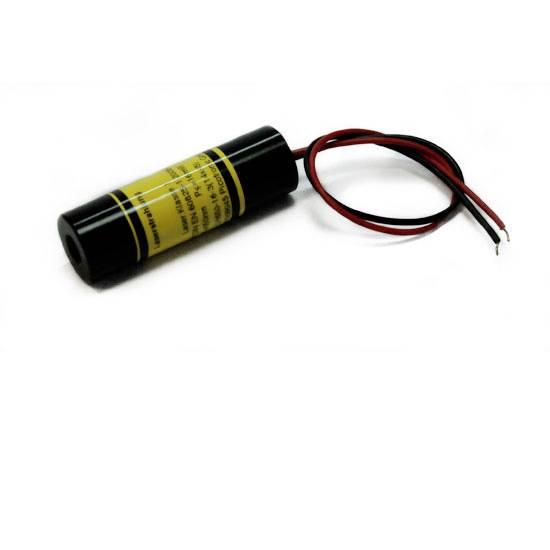

Picotronic Plumb dot laser Dot 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
635 nm
Power
1 mW
(Ø)
5 mm
Highlights & Details
Insulated point laser module, red, 635nm, 1mW, 3V DC, 14x45mm, class 2, focus 10m
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence B-0.3 mrad
- 10 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (10.0m)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (10.0m)
- Cable color GND: Black
- Cable length: 120 mm
- Cable type: 26AWG, 0.14mm²

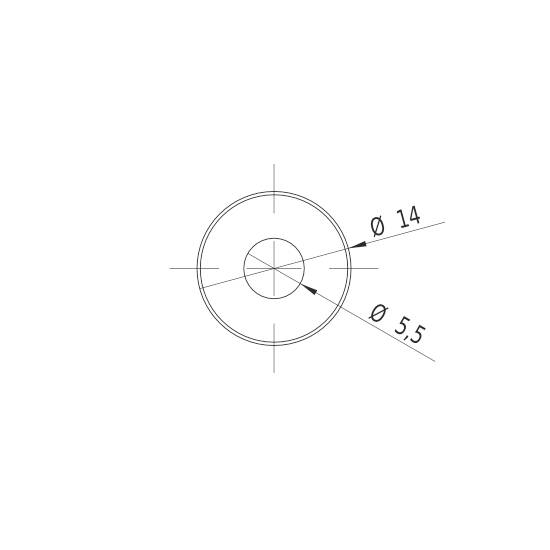

- Outlet diameter of optical 5 mm
- Black enclosure
- Beam diameter 5 mm
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
10 m fixed-focus
- Wavelength
635 nm
1 mW
- (Ø)
5 mm

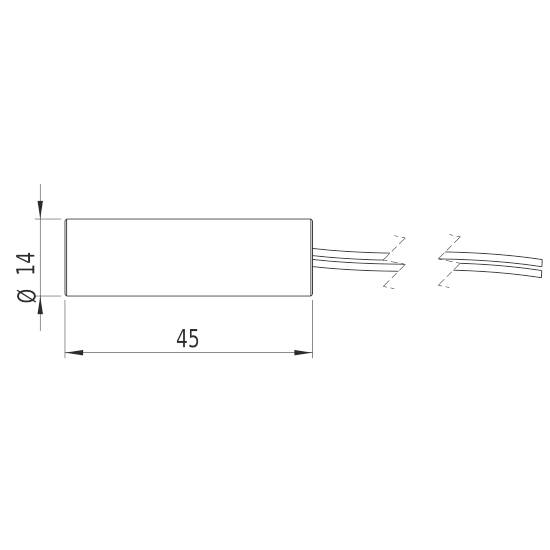

- Length
45 mm
- Laser category
2
- Beam divergence
0.3 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
40 mA
- Material
Aluminium
- Dim
(Ø x H) 5 mm x 45 mm
- Weight
15 g
- RoHS-compliant
Yes
- Width
14 mm
- Height
45 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987663 Picotronic Plumb dot laser Dot 1 mW
Information
Information 2987663 Picotronic Plumb dot laser Dot 1 mW
Conformity certificate
Conformity certificate 2987663 Picotronic Plumb dot laser Dot 1 mW
Description
Features
- Insulated point laser module, red, 635nm, 1mW, 3V DC, 14x45mm, class 2, focus 10m
- Operating voltage: 3 V DC
- Preset focus
- Image processing
- Compact design
- Class 2 laser
