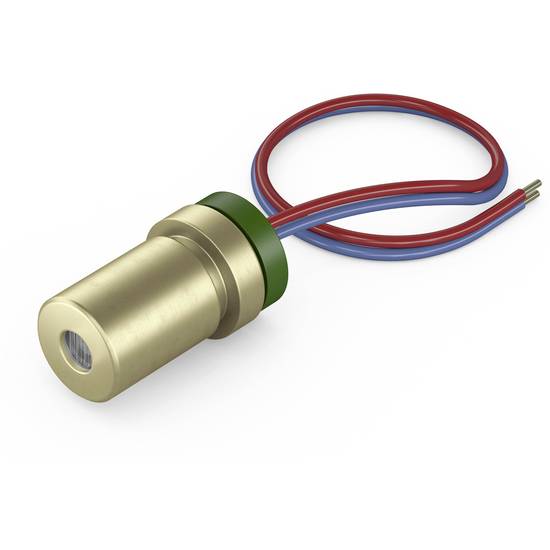

Picotronic Plumb dot laser Elliptical Brass 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
650 nm
Power
1 mW
(Ø)
7 mm
Highlights & Details
Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3V DC, 7x14mm, cable length 400mm
- Brass
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence G - 0.8 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Potential of the enclosure: VDD(+)Focus: Collimated
- Cable color GND: Blue
- Cable length: 400 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 2.5 mm
- Housing color: Brass
- Beam diameter 2.5 mm
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
collimated
- Factory colour
Brass
- Wavelength
650 nm
1 mW
- (Ø)
7 mm
- Length
14 mm
- Laser category
2
- Beam divergence
0.8 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
20 mA
- Material
Brass

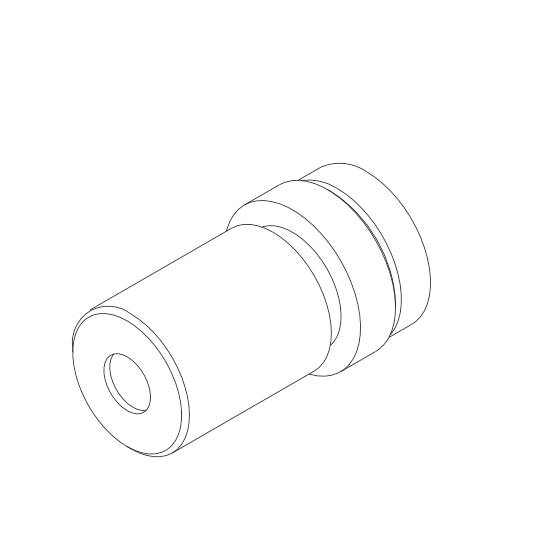

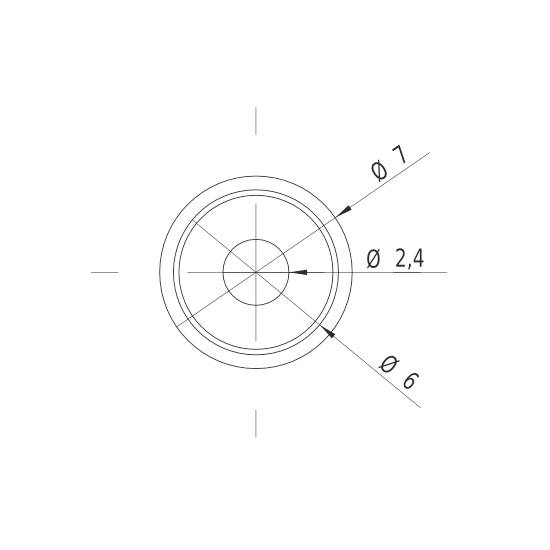

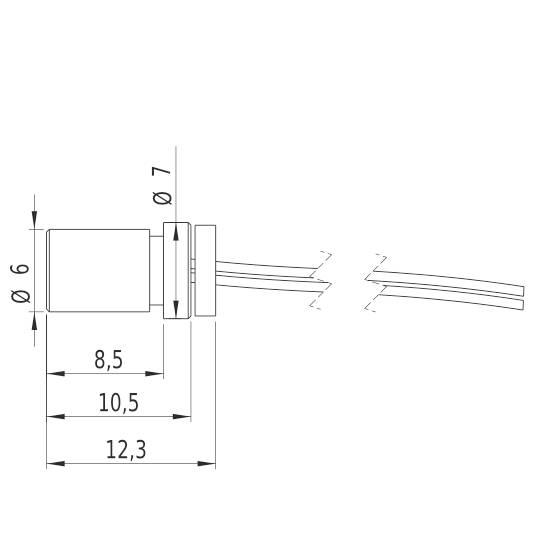

- Dim
(Ø x L) 7 mm x 14 mm
- Weight
1.5 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987660 Picotronic Plumb dot laser Elliptical Brass 1 mW
Information
Information 2987660 Picotronic Plumb dot laser Elliptical Brass 1 mW
Conformity certificate
Conformity certificate 2987660 Picotronic Plumb dot laser Elliptical Brass 1 mW
Description
Features
- Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3V DC, 7x14mm, cable length 400mm
- The type DG650-1-3(7x14)-C400 is a laser for projecting a red laser point. The laser module emits 650nm wavelength radiation. The laser has a very compact design (7x14mm). The module has a firmly set optics. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The product can be used excellently in light barriers, leveling systems or pointer applications, in industry, trade, hobby or show range. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 4..6mm@5m
- Optical power: 1mW (laser class 2); focus collimated
- Compact design: 7x14mm; axis deviation: Up to 3.0°
- For applications in e.g. light barriers, leveling systems or pointer applications, in industry, trade, hobby or the show area.
- Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
