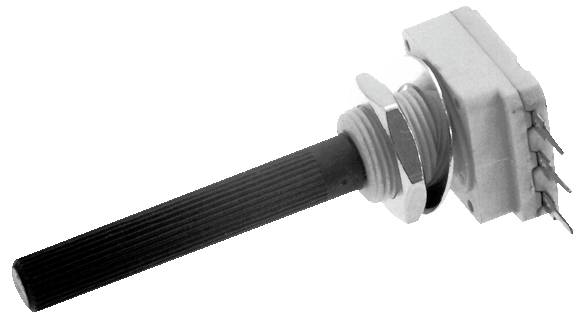

Piher PC16SH-10IP06251A2020TA Carbon film potentiometer Dustproof Mono 0.2 W 250 Ω 1 pc(s)
Part number:
Item no:
Product type
Carbon film potentiometer
Potentiometer features
Dustproof
Resistance
250 Ω
Resistance characteristic
linear
Output
Mono
Datasheet (PDF)
Highlights & Details
Piher potentiometer 16/6 mono linear 250R
- 250 Ω
- linear
Technical specifications
- ESD Packaging: No ESD
- Series PC16
- Design: Horizontal
- Length, socket 16 mm
- Width, base 16 mm
- Height, socket 6.5 mm
- Length, shaft 45 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.2 W
- Max voltage 250 V
- Mechanical rotation angle 300 °
- Electrical angle of rotation 280 °
- Stop strength 40 Ncm
- Torque 1.5 Ncm
- Approvals UL 94 V0
- Product type
Carbon film potentiometer
- Potentiometer features
Dustproof
- Resistance
250 Ω
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.2 W
- Cut-off voltage
250 V
- Mechanical angle
300°
- Electrical angle
280°
- Torque (max.)
1.5 Ncm
- Impact tolerance
40 Ncm
- Axle length
45 mm
- Axle type
Plastic
- Axle Ø
6 mm
- CS
5 mm
- Length
16 mm
- Width
16 mm
- Height
6.5 mm
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
PC16SH-10IP06251A2020TA
- Dim
(L x W x H) 16 x 16 x 6.5 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Certification marks
IEC 60529
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3463510 Piher PC16SH-10IP06251A2020TA Carbon film potentiometer Dustproof Mono 0.2 W 250 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463510 Piher PC16SH-10IP06251A2020TA Carbon film potentiometer Dustproof Mono 0.2 W 250 Ω 1 pc(s)
Description
POTENTIONS mono linear 6mm-axle
This text is machine translated.
This text is machine translated.
Features
- • 16mm carbon film potentiometer
- • Protection class IP54 to IEC 60529
- • Self-extinguishing material UL 94-V0
Scope of delivery
- PC16SH-10IP06251A2020TA.
