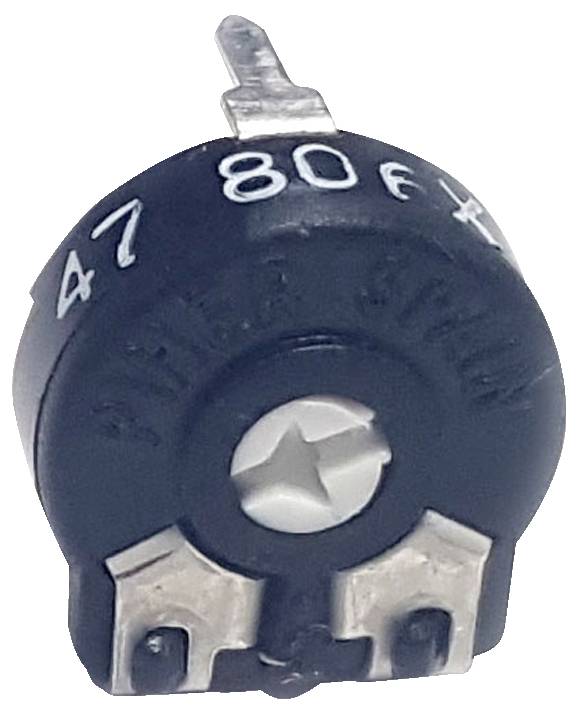

Piher PT10LV10-254A2020-S Carbon film pot Enclosed linear 0.15 W 250 kΩ 220 ° 235 ° 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Resistance
250 kΩ
Resistance characteristic
linear
Power rating
0.15 W
Mechanical angle
235 °
Datasheet (PDF)
Highlights & Details
Piher e-controller horizontal RM5/10 250K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PT10
- Design: Horizontal
- Diameter, housing 10.3 mm
- Axis: Arrow slot
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.15 W
- Max voltage 200 V
- Confirmation: From above
- Mechanical rotation angle 235 °
- Electrical angle of rotation 220 °
- Stop strength 5 Ncm
- Torque 2 Ncm
- Product type
Carbon film pot
- Potentiometer features
Enclosed
- Resistance
250 kΩ
- Resistance characteristic
linear
- Power rating
0.15 W
- Cut-off voltage
200 V
- Electrical angle
220°
- Mechanical angle
235°
- Operation type
top
- Tolerance ±
20 %
- Height
9.5 mm
- CS
10 mm
- Content
1 pc(s)
- Type
PT10LV10-254A2020-S
- RoHS-compliant
Yes
- Outside Ø
10.3 mm
- Mounting type
PCB mount
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3464923 Piher PT10LV10-254A2020-S Carbon film pot Enclosed linear 0.15 W 250 kΩ 220 ° 235 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464923 Piher PT10LV10-254A2020-S Carbon film pot Enclosed linear 0.15 W 250 kΩ 220 ° 235 ° 1 pc(s)
Description
Trimmer PT10Lv horizontal RM5/10mm
This text is machine translated.
This text is machine translated.
Features
- • Support made of high-quality polyester film
- • Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
- • Double sander, 2-way bearing
- • Great stability makes multiple use possible as a shift rotational resistance
- • Slider position visible by arrow
- • Resistant to cleaning agents, ultrasonic cleaning possible
