Piher PT15NH05-254A2020-S Carbon film pot Enclosed linear 0.25 W 250 kΩ 240 ° 265 ° 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Resistance
250 kΩ
Resistance characteristic
linear
Power rating
0.25 W
Mechanical angle
265 °
Datasheet (PDF)
Highlights & Details
Piher e-controller vertical RM5/10 250K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PT15
- Design: Vertical
- Diameter, housing 15 mm
- Axle: Slotted hole
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.25 W
- Max voltage 250 V
- Confirmation: Lateral
- Mechanical rotation angle 265 °
- Electrical angle of rotation 240 °
- Stop strength 10 Ncm
- Torque 2.5 Ncm
- Product type
Carbon film pot
- Potentiometer features
Enclosed
- Resistance
250 kΩ
- Resistance characteristic
linear
- Power rating
0.25 W
- Cut-off voltage
250 V
- Electrical angle
240°
- Mechanical angle
265°
- Operation type
side
- Tolerance ±
20 %
- Width
6.0 mm
- Height
21.5 mm
- CS
10 mm
- Dim
(W x H) 6.0 mm x 21.5 mm
- Content
1 pc(s)
- Type
PT15NH05-254A2020-S
- RoHS-compliant
Yes
- Outside Ø
15 mm
- Mounting type
PCB mount
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3464912 Piher PT15NH05-254A2020-S Carbon film pot Enclosed linear 0.25 W 250 kΩ 240 ° 265 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464912 Piher PT15NH05-254A2020-S Carbon film pot Enclosed linear 0.25 W 250 kΩ 240 ° 265 ° 1 pc(s)
Description

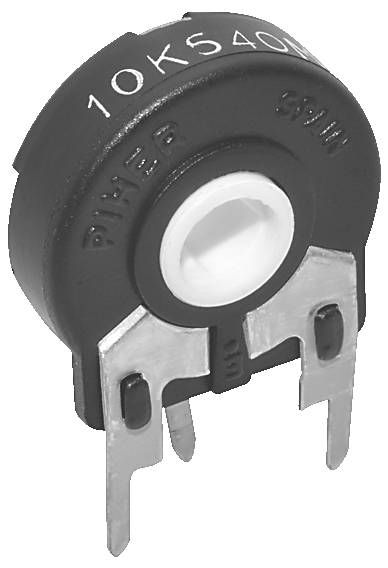

Trimmer PT15NH vertical RM5/10mm
This text is machine translated.
This text is machine translated.
Features
- • Support made of high-quality polyester film
- • Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
- • Double sander, 2-way bearing
- • Great stability makes multiple use possible as a shift rotational resistance
- • Slider position visible by arrow
- • Resistant to cleaning agents, ultrasonic cleaning possible
