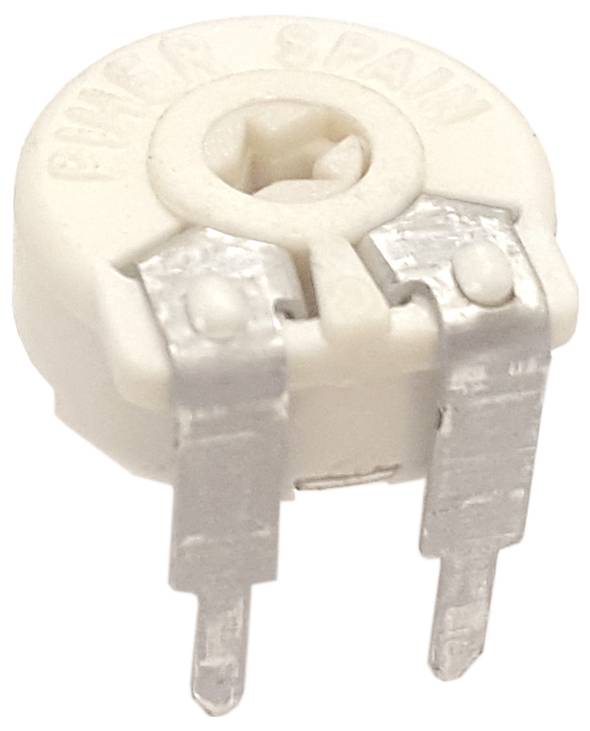

Piher PTC10LV10-104A2020 PTC10LV10104A2020 Cermet trimmer Enclosed linear 0.33 W 100 kΩ 220 ° 235 ° 1 pc(s)
Part number:
Item no:
Product type
Cermet trimmer
Resistance
100 kΩ
Resistance characteristic
linear
Power rating
0.33 W
Mechanical angle
235 °
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series PTC10
- Design: Horizontal
- Diameter, housing 10.3 mm
- Axis: Arrow slot
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.33 W
- Max voltage 200 V
- Confirmation: From above
- Mechanical rotation angle 235 °
- Electrical angle of rotation 220 °
- Stop strength 5 Ncm
- Torque 2 Ncm
- Approvals UL 94 V0
- Product type
Cermet trimmer
- Potentiometer features
Enclosed
- Resistance
100 kΩ
- Resistance characteristic
linear
- Power rating
0.33 W
- Cut-off voltage
200 V
- Electrical angle
220°
- Mechanical angle
235°
- Tolerance ±
20 %
- Height
9.5 mm
- CS
10 mm
- Content
1 pc(s)
- Type
PTC10LV10104A2020
- RoHS-compliant
Yes
- Outside Ø
10.3 mm
- Mounting type
PCB mount
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-40 °C
- Certification marks
IEC 60529
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464951 Piher PTC10LV10-104A2020 PTC10LV10104A2020 Cermet trimmer Enclosed linear 0.33 W 100 kΩ 220 ° 235 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464951 Piher PTC10LV10-104A2020 PTC10LV10104A2020 Cermet trimmer Enclosed linear 0.33 W 100 kΩ 220 ° 235 ° 1 pc(s)
Description
Cermet trimmer PTC10Lv horizontal RM5/10mm
This text is machine translated.
This text is machine translated.
Features
- • Substrate made of highly pure aluminum oxide ceramics
- • Fully enclosed housing
- • IP54 protection according to IEC 60529
- • Self-extinguishing plastic to UL94V-0
- • Great stability makes multiple use possible as a shift rotational resistance
- • Slider position visible by arrow
- • Resistant to cleaning agents, ultrasonic cleaning possible
