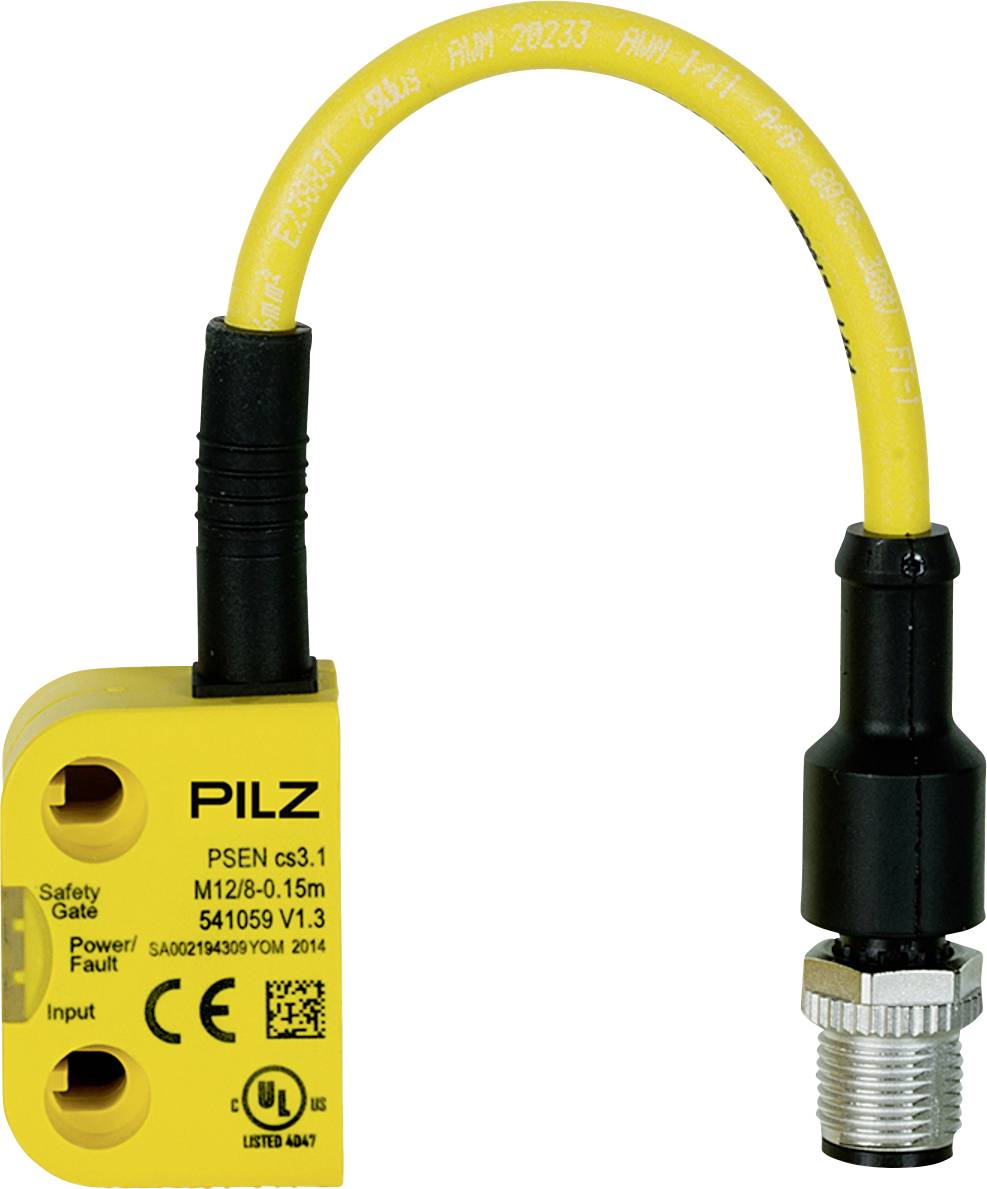

PILZ 541059 PSEN cs3.1 M12/8-0.15m 1switch RFID safety switch IP6K9K 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- SUPPLY VOLTAGE (V) 24 V/DC
- Power consumption DC: 1.0 W
- Sensor principle: Transponder
- Coding type: Coded
- Number of OSSD outputs: 2
- Number of inputs: 2
- Connection type: M12, 8pol Male
- Secured switch-off distance: 20.0 mm
- Safe switching distance: 8.0 mm
- Packaging type
Piece
- Product type
RFID safety switch
- Connection
M12 plug
- Weight
38 g
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP6K9K
- Cable length
0.15 m
- Thread size
M12
- Width
26 mm
- Type
PSEN cs3.1 M12/8-0.15m 1switch
- Content
1 pc(s)
- Dim
(W x H x D) 26 x 37 x 18 mm
- Height
37 mm
- Depth
18 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2182994 PILZ 541059 PSEN cs3.1 M12/8-0.15m 1switch RFID safety switch IP6K9K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2182994 PILZ 541059 PSEN cs3.1 M12/8-0.15m 1switch RFID safety switch IP6K9K 1 pc(s)
Description
PSENcode is used both for position monitoring of isolating protective devices in accordance with EN 60947-5-3 and for position monitoring. Thanks to the integrated evaluation and the standard interfaces, PSENcode is open to products from other manufacturers. This means that the coded safety switch fits perfectly into your environment and allows you to retrofit your equipment later!
