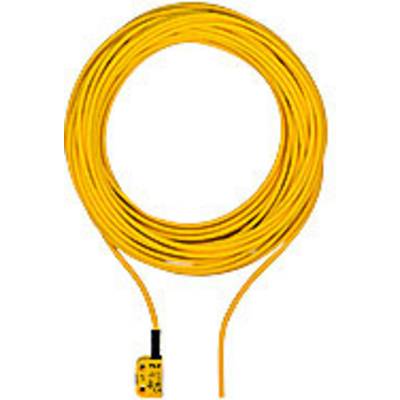

PILZ 541062 PSEN cs3.1b 1 switch RFID safety switch IP6K9K 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- SUPPLY VOLTAGE (V) 24 V/DC
- Power consumption DC: 1.0 W
- Sensor principle: Transponder
- Coding type: Coded
- Number of OSSD outputs: 2
- Number of inputs: 2
- Connection type: 10m cable
- Secured switch-off distance: 20.0 mm
- Safe switching distance: 8.0 mm
- Packaging type
Piece
- Product type
RFID safety switch
- Connection
Open end cable
- Weight
380 g
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP6K9K
- Cable length
10.00 m
- Width
26 mm
- Type
PSEN cs3.1b 1 switch
- Content
1 pc(s)
- Dim
(L x W x H) 10 m x 26 mm x 37 mm
- Height
37 mm
- Length
10 m
- Depth
18 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2182995 PILZ 541062 PSEN cs3.1b 1 switch RFID safety switch IP6K9K 1 pc(s)
Description
PSENcode is used both for position monitoring of isolating protective devices in accordance with EN 60947-5-3 and for position monitoring. Thanks to the integrated evaluation and the standard interfaces, PSENcode is open to products from other manufacturers. This means that the coded safety switch fits perfectly into your environment and allows you to retrofit your equipment later!
