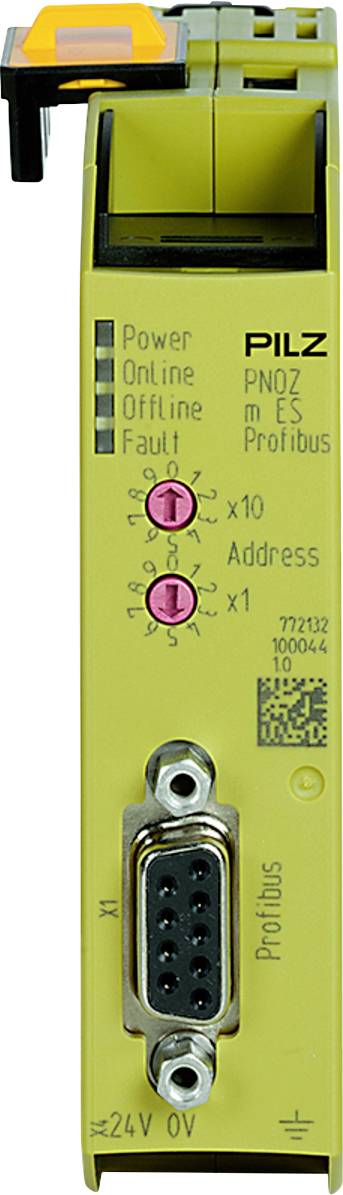

PILZ PLC communication module PNOZ m ES Profibus 772132 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Fieldbus interface: PROFIBUS-DP
- Fieldbus connection: 9-pin Sub-D female connector
- Fieldbus type: Slave DPV0
- Number of PROFIBUS DP interfaces: 1
- Type
PNOZ m ES Profibus
- Product type
PLC communication module
- Dim
(W x H x D) 22.5 x 101.4 x 115 mm
- Operating voltage
24 V DC
- Weight
95 g
- Manufacturer part #
772132
- Width
22.5 mm
- Height
101.4 mm
- Depth
115 mm
- Interfaces
D-SUB socket 9-pin
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2182967 PILZ PLC communication module PNOZ m ES Profibus 772132 24 V DC
User & Safety Instructions
User & Safety Instructions 2182967 PILZ PLC communication module PNOZ m ES Profibus 772132 24 V DC
Description

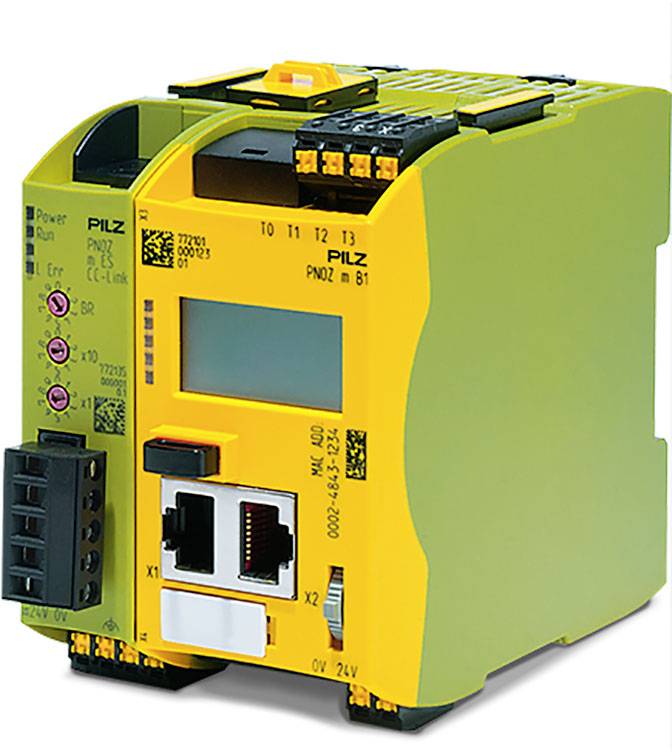

The communication and fieldbus modules of the PNOZmulti 2 product family are used to connect to the common fieldbus systems such as PROFIBUS-DP, PROFINET, CANopen, etc. An expansion module with serial interface (RS232) is also available as is the connection to the Ethernet systems. Read-out data can be used for diagnostics or visualization or for control. A maximum of 1 fieldbus module and an additional maximum of 1 communication module - ETH or RS232 - can be connected to the basic device on the left-hand side.
