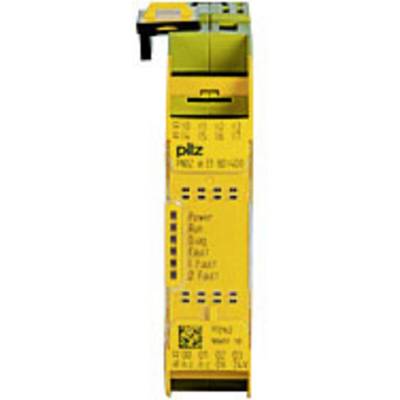

PILZ PLC I/O module PNOZ m EF 8DI4DO 772142 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Terminal type: Screw terminal, spring-loaded terminal
- Terminal type: Pluggable
- Number of digital inputs: 8
- HL output 1-pole positive switching: 4
- Type
PNOZ m EF 8DI4DO
- Product type
PLC I/O module
- Dim
(W x H x D) 22.5 x 101.4 x 120 mm
- No. of digital inputs (max.)
8
- Operating voltage
24 V DC
- Weight
105 g
- Manufacturer part #
772142
- Width
22.5 mm
- Height
101.4 mm
- Depth
120 mm
IP20
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Connector
Push-in terminal
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2182948 PILZ PLC I/O module PNOZ m EF 8DI4DO 772142 24 V DC
User & Safety Instructions
User & Safety Instructions 2182948 PILZ PLC I/O module PNOZ m EF 8DI4DO 772142 24 V DC
Description
Expansion modules are used for modular expansion in conjunction with a basic device. Safe input and output, speed monitoring and connection modules are available.
Your application benefits :
· Fast and easy configuration: Software blocks for input, plausibility, scaling and arithmetic functions
· 4 independant, safe analogue current inputs, each input can be configured separately
· Current range: 4-20 mA, measuring range: 0-25 mA, resolution: 15-bit + sign bit
· Flexible use: Limit values can be freely parameterized
· Fast response times: MIQ module program technology with distributed processing in the module
· Convenient diagnostics: Up to 6 analogue values can be transferred to fieldbus per module
· Basic devices: 12 modules can be connected to the PNOZ m B1, six expansion modules can be connected to the PNOZ m B0
This text is machine translated.
Your application benefits :
· Fast and easy configuration: Software blocks for input, plausibility, scaling and arithmetic functions
· 4 independant, safe analogue current inputs, each input can be configured separately
· Current range: 4-20 mA, measuring range: 0-25 mA, resolution: 15-bit + sign bit
· Flexible use: Limit values can be freely parameterized
· Fast response times: MIQ module program technology with distributed processing in the module
· Convenient diagnostics: Up to 6 analogue values can be transferred to fieldbus per module
· Basic devices: 12 modules can be connected to the PNOZ m B1, six expansion modules can be connected to the PNOZ m B0
This text is machine translated.
