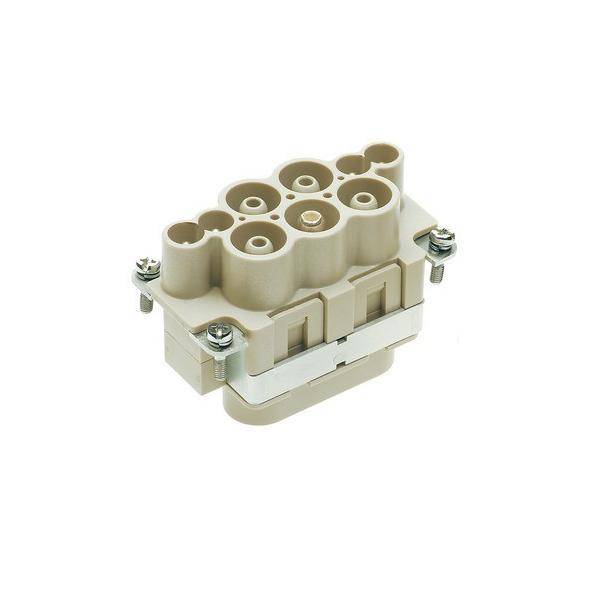

Pin insert 09380082602 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
8
Type
09380082602
Manufacturer part #
09380082602
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
14-day return policy included
Highlights & Details
Pin insert
Our service for you
Technical specifications
- Net weight: 119.56 g
- Size: 10 B
- Rated current: 63 A
- Number of contacts: 4
- Rated voltage: 690 V
- Conductor cross-section: 0.14 mm² - 2.5 mm² Control, 10 mm² - 22 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 3 Nm - 10 mm², 4 Nm - 16 mm², 4 Nm - 22 mm²
- Rated surge voltage: 8 kV
- Rated surge voltage Control: 4 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.5 mΩ
- Wire stripping length: 11 mm - 12 mm, 13 mm - 14 mm 22 mm², 7 mm - 9 mm Control
- Pollution degree: 3
- Wire outer diameter: ≤11 mm 22 mm², ≤8.9 mm
- Additional contacts: + 4 additional control contacts
- Rated current Control: 16 A
- Rated voltage control: 250 V.
- Type
09380082602
- Product type
Pin inset
- Manufacturer part #
09380082602
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
8
- Connection
Axial screw terminal
Spring-loaded
- Total no. of pins
8 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
not relevant
