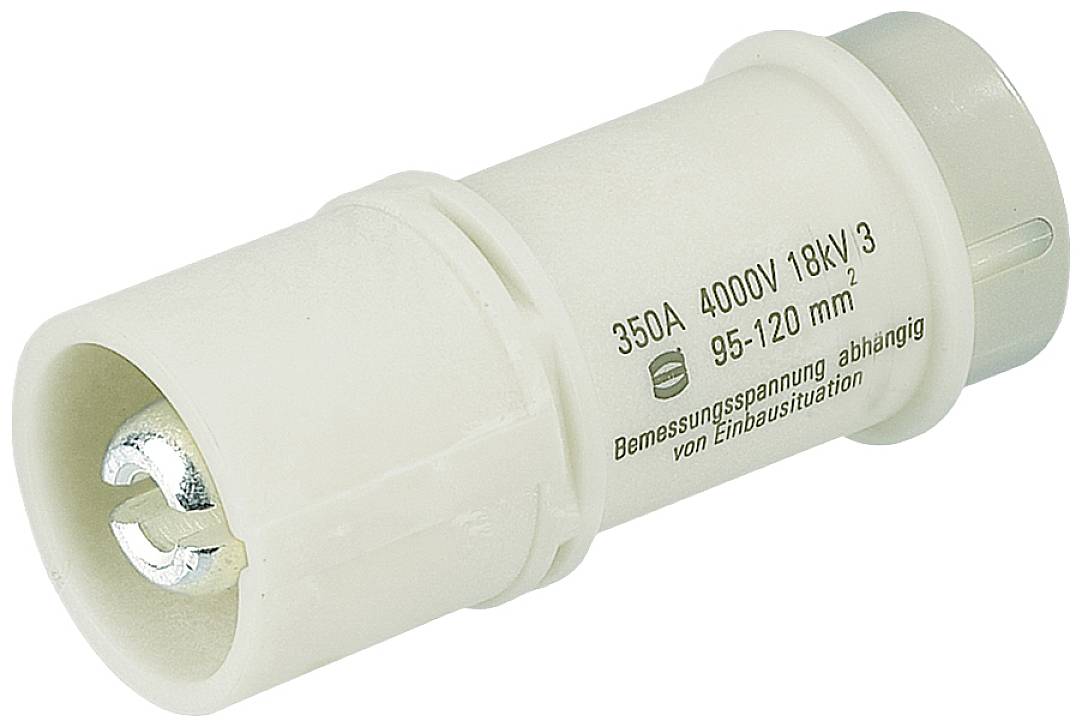

Pin insert 09110012652 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Number of pins
1
Type
09110012652
Manufacturer part #
09110012652
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 126.18 g
- Rated current: 350 A
- Rated voltage: 2000 V
- Conductor cross-section: 95 mm² - 120 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 14 Nm - 95 mm², 16 Nm - 120 mm²
- Rated surge voltage: 12 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.2 mΩ
- Stripping length: 19 mm - 20 mm
- Pollution degree: 3
- Wire outer diameter: ≤19.5 mm
- Packaging type
Piece
- Type
09110012652
- Product type
Pin inset
- Manufacturer part #
09110012652
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
1
- Connection
Axial screw terminal
- Total no. of pins
1
- Content
1 pc(s)
- Material
Polyamide
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
yes
