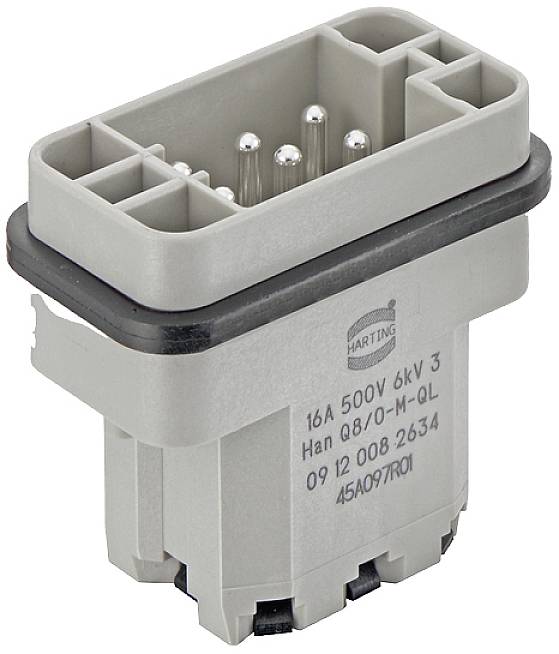

Pin insert 09120082634 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Number of pins
8
Type
09120082634
Manufacturer part #
09120082634
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Pin insert
Our service for you
Technical specifications
- Net weight: 32.1 g
- Size: Han-Compact
- Rated current: 16 A
- Number of contacts: 8
- Rated voltage: 500 V
- Wire cross-section: 0.25 mm² - 1.5 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 3 mΩ
- Wire stripping length: 10 mm
- Pollution degree: 3
- Packaging type
Piece
- Type
09120082634
- Product type
Pin inset
- Manufacturer part #
09120082634
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
8
- Connection
Han Quick-Lock®
- Total no. of pins
8 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
