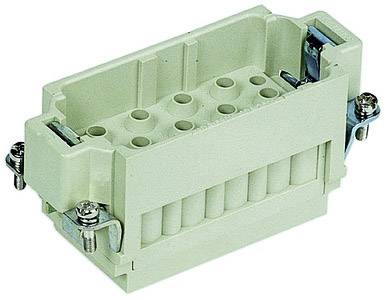

Pin insert 09320123001 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
14
Type
09320123001
Manufacturer part #
09320123001
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 67.22
-5 %
€ 63.86
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 73 g
- Size: 16 B
- Rated current: 40 A
- Number of contacts: 12
- Rated voltage: 690 V
- Conductor cross-section: 0.14 mm² - 2.5 mm² Control. 1.5 mm² - 6 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Rated surge voltage: 8 kV
- Rated surge voltage Control: 4 kV
- Pollution degree: 3
- Wire outer diameter: ≤5 mm Additional contacts: + 2 additional control contacts Rated current Control: 10 A Rated voltage Control: 250 V.
- Type
09320123001
- Product type
Pin inset
- Manufacturer part #
09320123001
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
14
- Connection
Crimp
- Total no. of pins
14 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
