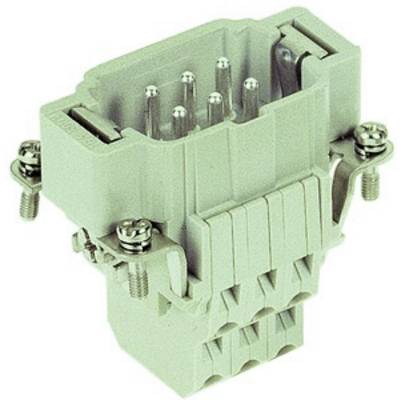

Pin insert 09330062672 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
6
Type
09330062672
Manufacturer part #
09330062672
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 63.4 g
- Size: 6 B
- Rated current: 16 A
- Number of contacts: 6
- Rated voltage: 500 V
- Wire cross-section: 0.14 mm² - 2.5 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 3 mΩ
- Stripping length: 9 mm - 11 mm
- Pollution degree: 3
- Type
09330062672
- Product type
Pin inset
- Manufacturer part #
09330062672
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
6
- Connection
Spring-loaded
- Total no. of pins
6 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1989494 Pin insert 09330062672 HARTING Content: 1 pc(s) Pin inset
User & Safety Instructions
User & Safety Instructions 1989494 Pin insert 09330062672 HARTING Content: 1 pc(s) Pin inset
