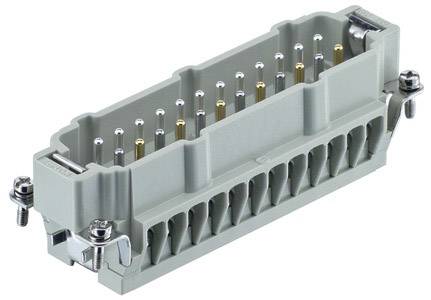

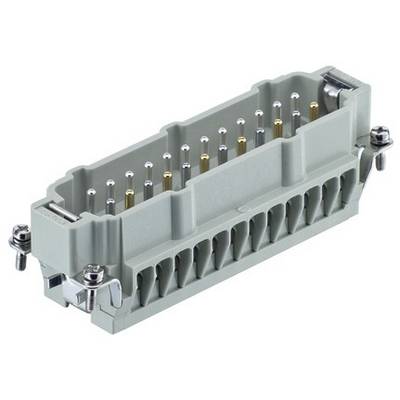

Pin insert 09330242689 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
24
Type
09330242689
Manufacturer part #
09330242689
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Net weight: 117.38 g
- Size: 24 B
- Rated current: 16 A
- Number of contacts: 24
- Rated voltage: 400 V
- Wire cross-section: 1 mm² - 2.5 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 0.5 Nm
- Rated surge voltage: 6 kV
- Pollution degree: 3
- Type
09330242689
- Product type
Pin inset
- Manufacturer part #
09330242689
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
24
- Connection
Screws
- Total no. of pins
24 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
