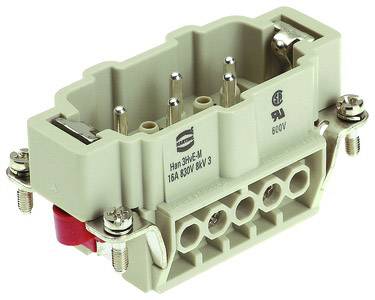

Pin insert 09340032601 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
5
Type
09340032601
Manufacturer part #
09340032601
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 51.86 g
- Size: 10 B
- Rated current: 16 A
- Number of contacts: 3
- Rated voltage: 830 V
- Conductor cross-section: 0.75 mm² - 2.5 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 0.5 Nm
- Rated surge voltage: 8 kV
- Contact surface: Silver plated
- Forward resistance: ≤ 1 mΩ
- Stripping length: 7.5 mm
- Pollution degree: 3
- additional contacts: + 2 additional switching contacts
- Type
09340032601
- Product type
Pin inset
- Manufacturer part #
09340032601
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
5
- Connection
Screws
- Total no. of pins
5 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
