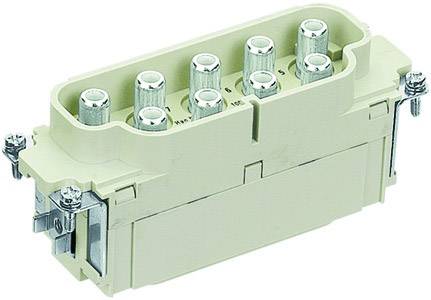

Pin insert 09380082653 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
8
Type
09380082653
Manufacturer part #
09380082653
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Net weight: 304.75 g
- Size: 24 B
- Rated current: 100 A
- Number of contacts: 8
- Rated voltage: 690 V
- Conductor cross-section: 10 mm² - 25 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 7 Nm - 25 mm², 6 Nm - 10 mm², 6 Nm - 16 mm²
- Rated surge voltage: 8 kV
- Contact surface: Silver plated
- Forward resistance: ≤ 0.5 mΩ
- Stripping length: 13 mm - 14 mm
- Pollution degree: 3
- wire outer diameter: ≤11.4 mm
- Type
09380082653
- Product type
Pin inset
- Manufacturer part #
09380082653
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
8
- Connection
Axial screw terminal
- Total no. of pins
8 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
