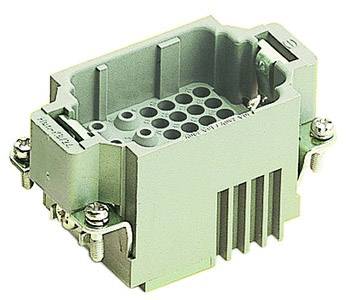

Pin insert 09380323001 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
32
Type
09380323001
Manufacturer part #
09380323001
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Net weight: 53 g
- Size: 10 B
- Rated current: 16 A
- Number of contacts: 8
- conductor cross-section: 0.14 mm² - 2.5 mm² Control. 0.5 mm² - 4 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Rated voltage Conductor ground: 230 V
- Rated voltage Conductor conductor: 400 V
- Rated surge voltage: 4 kV
- Rated surge voltage Control: 2.5 kV
- Pollution degree: 3
- additional contacts: + 24 additional control contacts
- Rated current Control: 10 A
- Rated voltage Control: 160 V.
- Type
09380323001
- Product type
Pin inset
- Manufacturer part #
09380323001
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
32
- Connection
Crimp
- Total no. of pins
32 + PE
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
