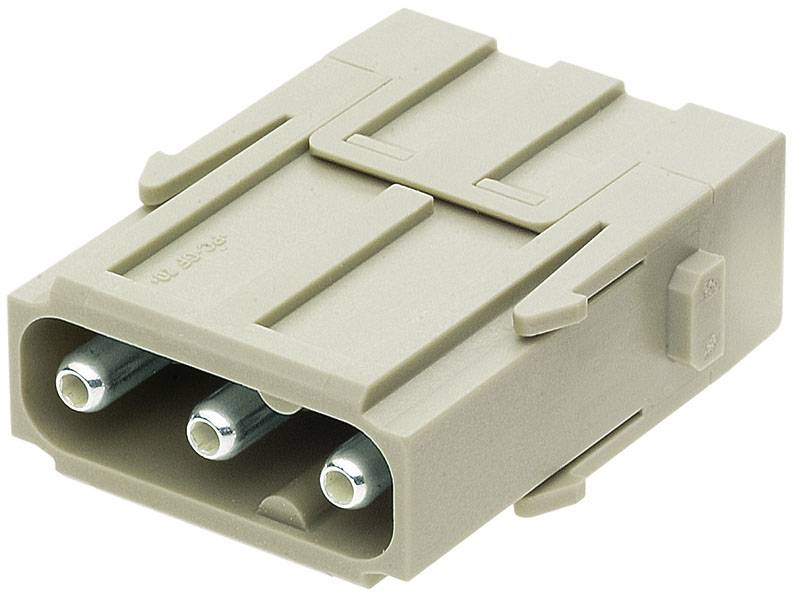

Pin module 09140032602 HARTING Content: 1 pc(s) Pin module
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin module
Number of pins
3
Type
09140032602
Manufacturer part #
09140032602
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
14-day return policy included
Highlights & Details
Pin module
Our service for you
Technical specifications
- Net weight: 32.6 g
- Rated current: 40 A
- Number of contacts: 3
- Rated voltage: 690 V
- Conductor cross-section: 6 mm² - 10 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 2 Nm - 6 mm², 2 Nm - 10 mm²
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.3 mΩ
- Stripping length: 8 mm 6 mm², 11 mm 10 mm²
- Pollution degree: 3
- Packaging type
Piece
- Type
09140032602
- Product type
Pin module
- Manufacturer part #
09140032602
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
3
- Connection
Axial screw terminal
- Total no. of pins
3
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
Documents & Downloads
Datasheet
Datasheet 1989689 Pin module 09140032602 HARTING Content: 1 pc(s) Pin module
User & Safety Instructions
User & Safety Instructions 1989689 Pin module 09140032602 HARTING Content: 1 pc(s) Pin module
