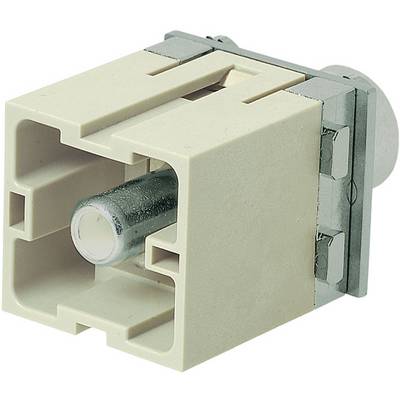

Pin module 09140012663 HARTING Content: 1 pc(s) Pin module
EAN:
Part number:
Item no:
Product type
Pin module
Number of pins
1
Type
09140012663
Manufacturer part #
09140012663
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 46.21
€ 45.37
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Net weight: 71.3 g
- Rated current: 200 A
- Number of contacts: 1
- Rated voltage: 1000 V
- Conductor cross-section: 25 mm² - 40 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 8 Nm
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.2 mΩ
- Stripping length: 16 mm
- Pollution degree: 3
- Type
09140012663
- Product type
Pin module
- Manufacturer part #
09140012663
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
1
- Connection
Axial screw terminal
- Total no. of pins
1
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
yes
