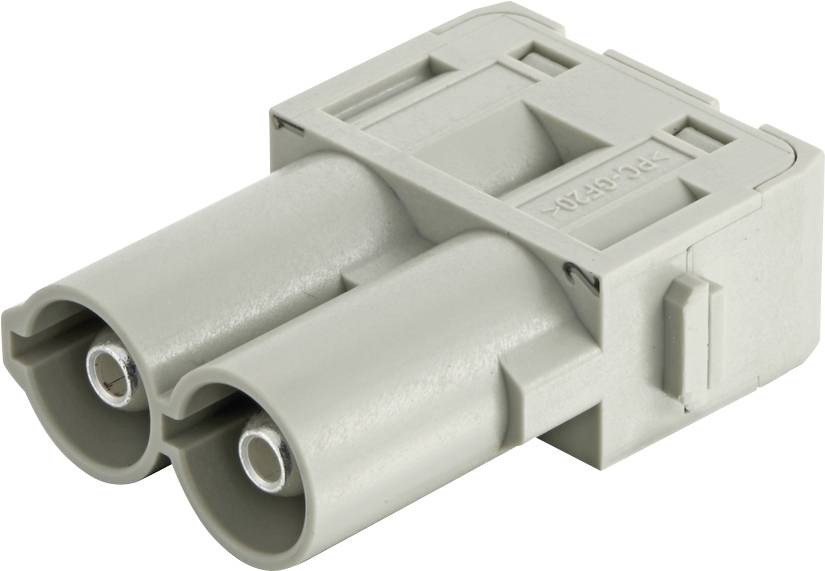

Pin module 09140022647 HARTING Content: 1 pc(s) Pin module
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin module
Number of pins
2
Type
09140022647
Manufacturer part #
09140022647
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Pin module
Our service for you
Technical specifications
- Net weight: 31.86 g
- Rated current: 70 A
- Number of contacts: 2
- Rated voltage: 1000 V
- Conductor cross-section: 14 mm² - 22 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 4 Nm - 16 mm², 4 Nm - 14 mm², 4 Nm - 22 mm²
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.5 mΩ
- Stripping length: 12.5 mm - 13.5 mm
- Pollution degree: 3
- Packaging type
Piece
- Type
09140022647
- Product type
Pin module
- Manufacturer part #
09140022647
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
2
- Connection
Axial screw terminal
- Total no. of pins
2
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
