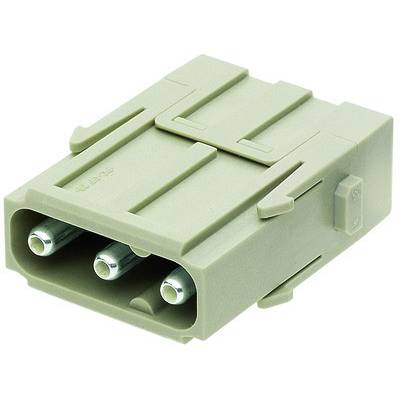

Pin module 09140032601 HARTING Content: 1 pc(s) Pin module
EAN:
Part number:
Item no:
Product type
Pin module
Number of pins
3
Type
09140032601
Manufacturer part #
09140032601
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 33.42 g
- Rated current: 40 A
- Number of contacts: 3
- Rated voltage: 690 V
- Conductor cross-section: 2.5 mm² - 8 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 2 Nm - 6 mm², 1.5 Nm - 2.5 mm², 1.5 Nm - 4 mm²
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.3 mΩ
- Stripping length: 5 mm 4 mm², 8 mm 6 mm², 5 mm 2.5 mm²
- Pollution degree: 3
- Type
09140032601
- Product type
Pin module
- Manufacturer part #
09140032601
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
3
- Connection
Axial screw terminal
- Total no. of pins
3
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1989688 Pin module 09140032601 HARTING Content: 1 pc(s) Pin module
User & Safety Instructions
User & Safety Instructions 1989688 Pin module 09140032601 HARTING Content: 1 pc(s) Pin module
