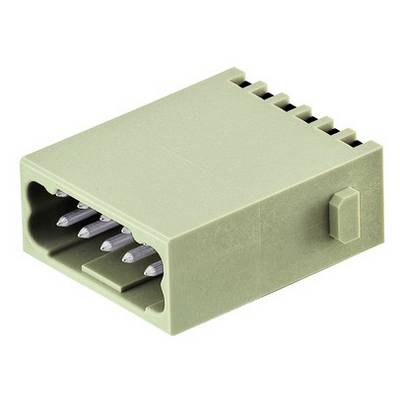

Pin module 09140122632 HARTING Content: 1 pc(s) Pin module
EAN:
Part number:
Item no:
Product type
Pin module
Number of pins
12
Type
09140122632
Manufacturer part #
09140122632
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 20.46 g
- Rated current: 10 A
- Number of contacts: 12
- Rated voltage: 250 V
- Conductor cross-section: 0.25 mm² - 1.5 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Rated surge voltage: 4 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 3 mΩ
- Stripping length: 10 mm
- Pollution degree: 3
- Type
09140122632
- Product type
Pin module
- Manufacturer part #
09140122632
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
12
- Connection
Han Quick-Lock®
- Total no. of pins
12
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
yes
