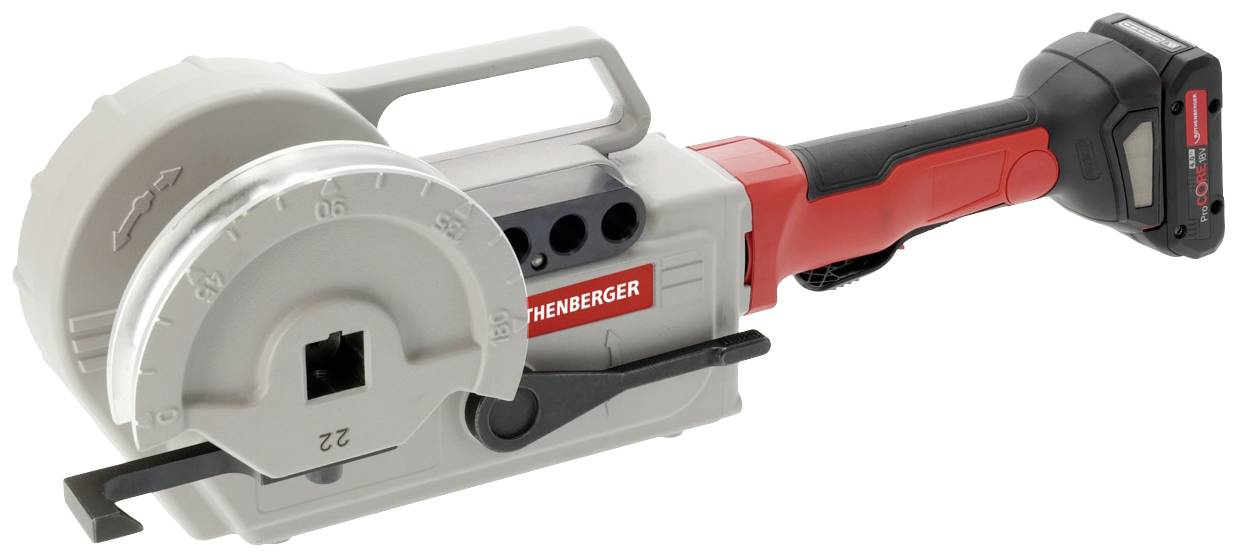

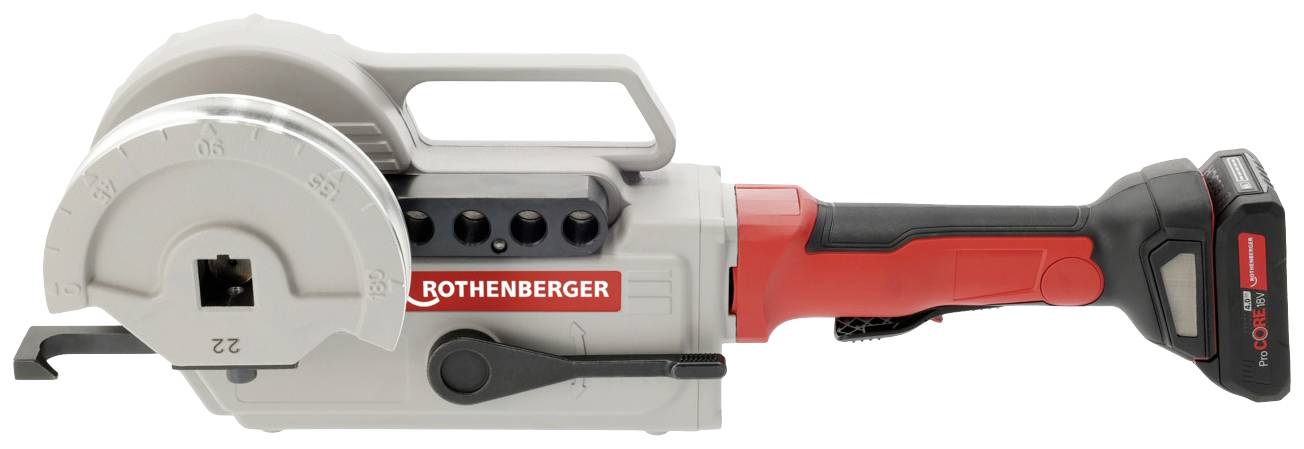

Pipe bending device ROBEND 4000 E set, 15-18-22-28 AMP Rothenberger 1000004191
EAN:
Part number:
Item no:
Number
Total (€ 1,923.53 / piece)
€ 1,923.53
plus VAT.
14-day return policy included
Technical specifications
- Working range diameter 15 mm – 28 mm
- Bending radius 52.5 - 112 mm
- Max. Bending angle 180 °
- Bending force 3.2 kN
- Power: 1,010 W
- Mains plug type: Plug type C (CEE 7/16)
- Battery voltage 18 V
- Rechargeable battery capacity 4.0 Ah
- Product type
Pipe bender
- Max. bend radius
112 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220860 Pipe bending device ROBEND 4000 E set, 15-18-22-28 AMP Rothenberger 1000004191
Description
The bending device set ROBEND 4000 E AMPShare with the bending sets 15-18-22-28 mm, is suitable for bending pipes made of copper, stainless steel and C-steel in the dimensions 15-28 mm (1/2-1.1/8 inch) with a maximum bending radius of 180°. The brushless motor ensures a longer service life and work with less wear of the machine. With the tool-free preset of the bending angle and the automatic cut-off when the desired bending angle is reached, the ROBEND 4000 E AMPShare is perfectly suitable for series production. Deformation-free and wrinkle-free bending is guaranteed by the patented ROLUB technology. With the 18 V battery up to 60 bends are possible. Faster and more precise working is made possible by the simple handling.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ROBEND 4000 E AMPShare basic machine
- Bending set 15 mm
- Bending set 18 mm
- Bending set 22 mm
- Bending set 28 mm
- PROCore 18/4, 4.0 Ah 18 V Li-Power battery
- 14/36 charger, 230 V, EU
- Tripod
- Sliding shoe axle
- User manual
- ROCASE 6427
