Pizzato Elettrica BN AC4ZA68 Command encoder unit lockable EMERGENCY STOP 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

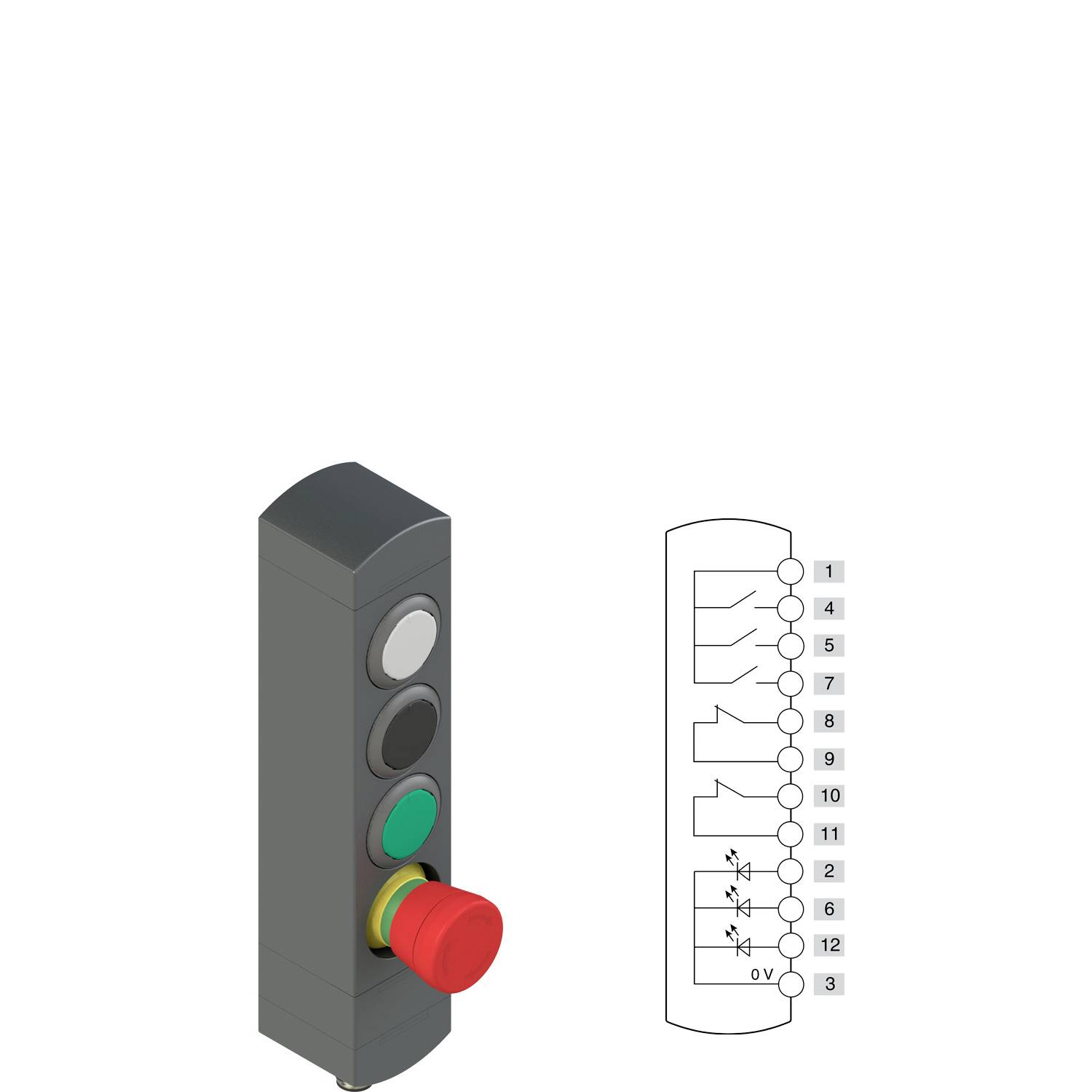

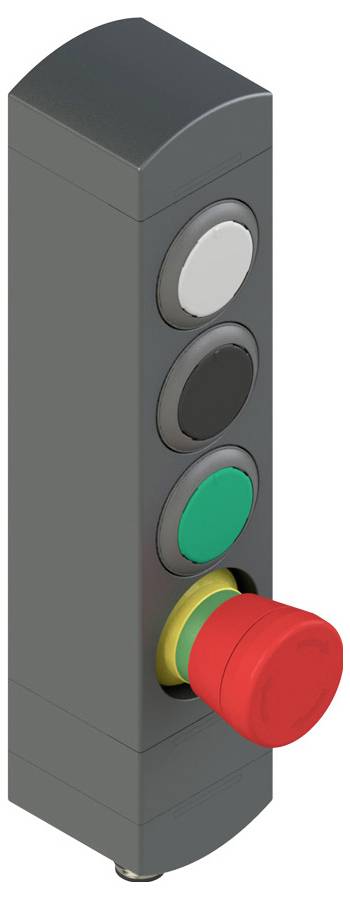

BN series command generator unit
- Number of devices: 4 devices
- Position 1: 1 white push-button 1NO
- Position 2: 1 black pressure button 1NO
- Position 3: 1 green push-button 1NO
- Position 4: 1 red emergency stop button, rotary unlocked, 2NC
- IP65 to EN 60529 standard
- Connection and alignment: M12 12-pin connector, bottom
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Command encoder unit
- Switch/button features
lockable
- Print motif
EMERGENCY STOP
- Connection
Connector
IP65
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Industrial packaging
Yes
- Content
1 pc(s)
- Type
BN AC4ZA68
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3737441 Pizzato Elettrica BN AC4ZA68 Command encoder unit lockable EMERGENCY STOP 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3737441 Pizzato Elettrica BN AC4ZA68 Command encoder unit lockable EMERGENCY STOP 1 pc(s) Piece
