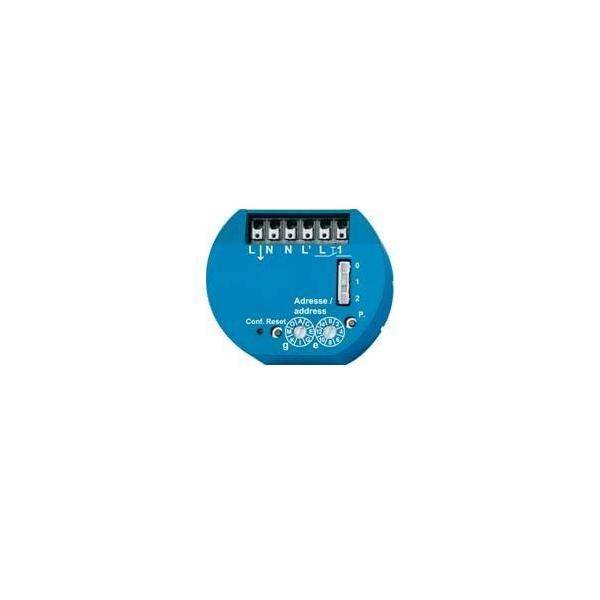

PL-SAM1L Eltako Actuator Flush mount Switching capacity (max.) 2000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
14-day return policy included
Technical specifications
- Product type
Actuator
- Series
Eltako
- Max. switching capacity
2000 W
- Operating voltage
230 V
- Mounting type
Flush mount
2000 W
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.06
- Switching current (max.)
10 A
- Factory colour
Red
Flush mounted (plaster)
10 A
0.5 W
2000 W
230-230 V
FALSE
FALSE
TRUE
2000 W
TRUE
1
10 A
None
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
FALSE
25 mm
400 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2636418 PL-SAM1L Eltako Actuator Flush mount Switching capacity (max.) 2000 W
User & Safety Instructions
User & Safety Instructions 2636418 PL-SAM1L Eltako Actuator Flush mount Switching capacity (max.) 2000 W
Description

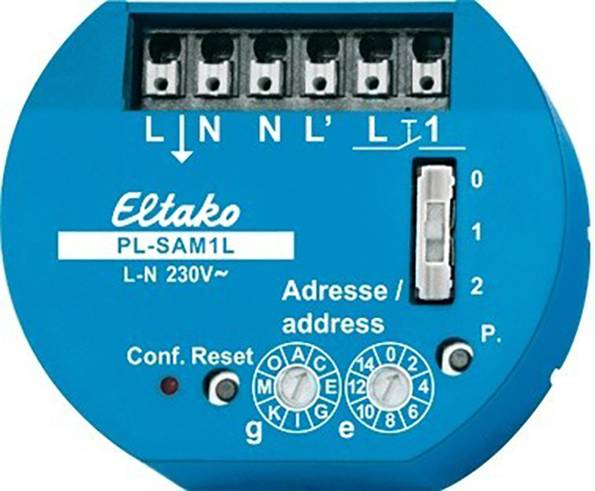

Powerline actuator 1 channel with sensor input 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. Can be used as surge current switch or relay. 1 closing contact not floating 10A/250V AC, incandescent bulbs 2000 watt. Sensor input 230V. Standby loss of only 0.5 watt. For controlling and switching on the same place. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address element with 16 numerical values from 0 to 15. Above it, there is a slider as configuration switch with positions 0, 1 and 2. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2.
