PL-SAM1LT Eltako Actuator Surge protection switch Flush mount Switching capacity (max.) 2000 W

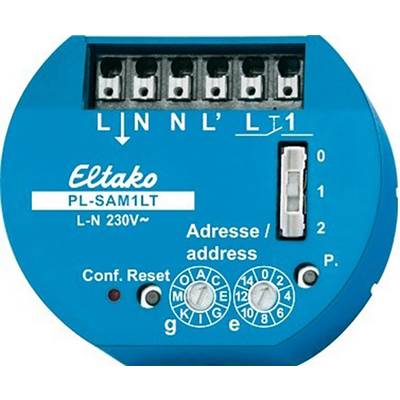

Powerline TLZ actuator with 1 channel 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. Off-delay from 1 minute to 120 minutes. Adjustable switch-off pre-warning. 1 closing contact not floating 10A/250V AC, incandescent bulbs 2000 watt. Sensor input 230V. Standby loss of only 0.5 watt. For controlling and switching on the same place. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the fall-back delay time. Above it, there is a slider as configuration switch with positions 0, 1 and 2. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2.
