PL-SAM2L Eltako Actuator Flush mount Switching capacity (max.) 1000 W

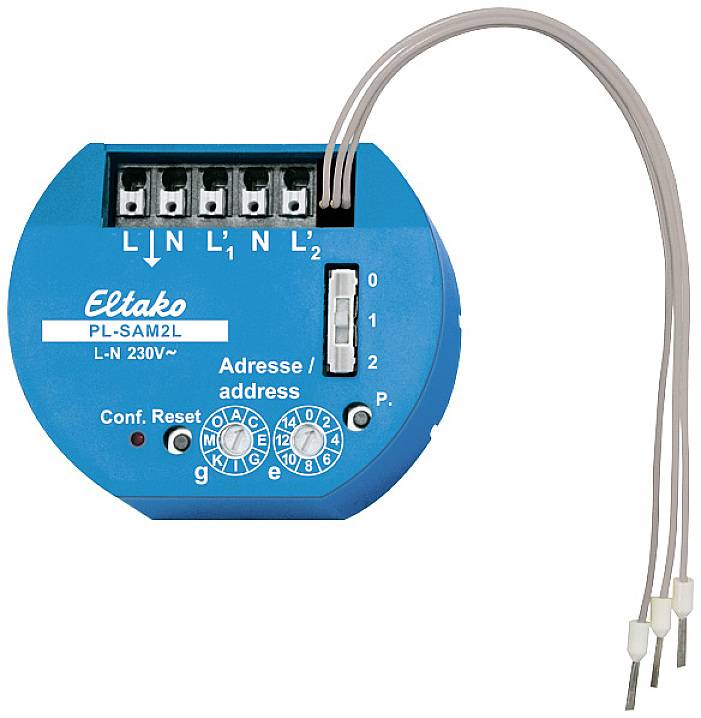

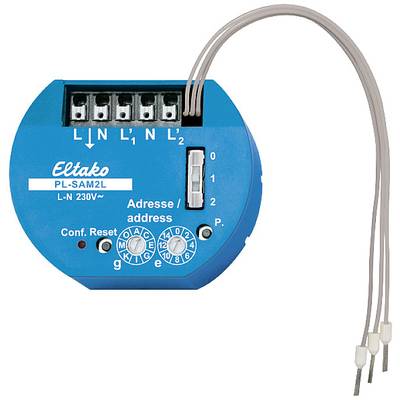

Powerline actuator with 2 channels 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. Can be used as surge current switch or relay. 1+1 closer not floating 5A/250V AC, incandescent lamps 1000 watt. 2 sensor inputs with internal low voltage. Standby loss of only 0.5 watt. For controlling and switching on the same place. Only use potential-free switching elements. Internal low voltage at the sensor inputs. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address element with 16 numerical values from 0 to 15. Above it, there is a slider as configuration switch with positions 0, 1 and 2. Position 0: Sensor inputs act as buttons (surge current switch. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2. There are also three wires with wire-end sleeves for the two control inputs with internal extra-low voltage.
