PL-SM1L Eltako Actuator Flush mount

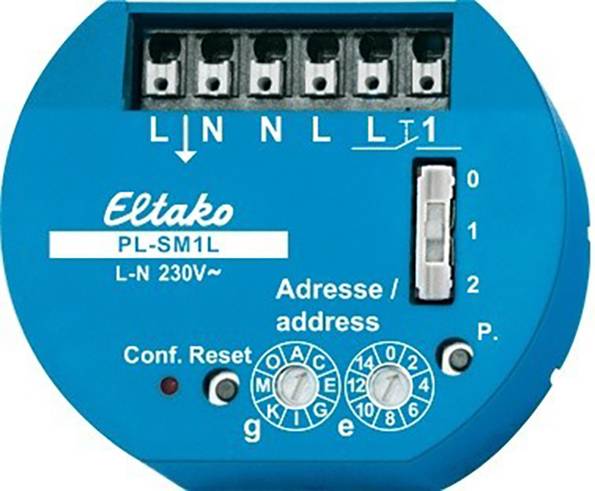

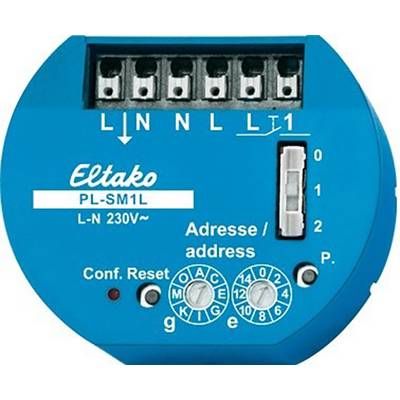

Powerline sensor input with 1 channels. 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. Sensor input 230V. Standby loss of only 0.5 watt. For controlling and switching in different places. The sensor input acts on all actuators with the same address during the keys or as central key when using element address 0. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address element with 16 numerical values from 0 to 15. Above it, there is a slider as configuration switch with positions 0, 1 and 2. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2.
