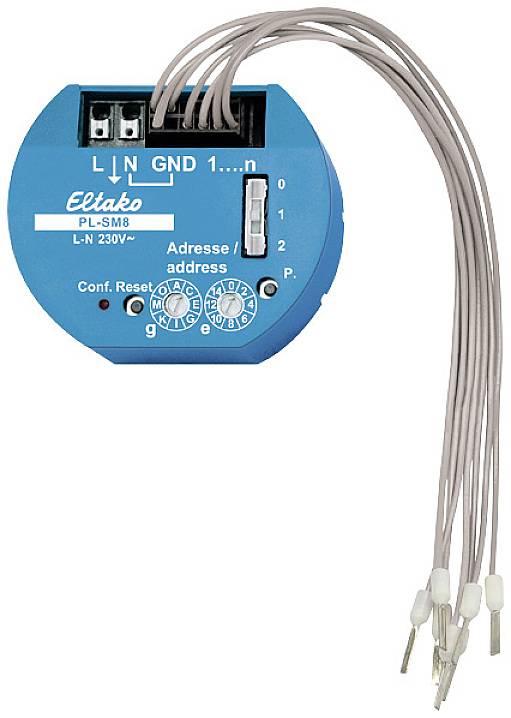

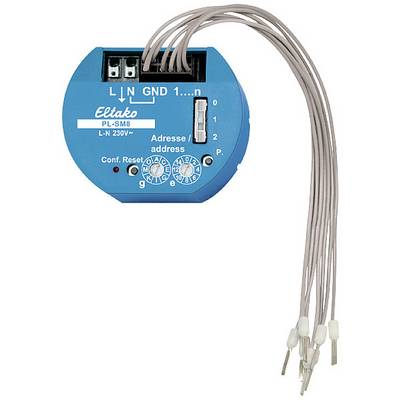

PL-SM8 Eltako Actuator Flush mount

Powerline sensor input with 8 channels. 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. 8 sensor inputs with internal low voltage. Standby loss of only 0.5 watt. For controlling and switching in different places. Only use potential-free switching elements. Internal low voltage at the sensor inputs. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address element with 16 numerical values from 0 to 15. Above it there is a sliding switch as configuration switch. Position 0: 2 neighboring inputs each as direction button for UP/DOWN or ON/OFF. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2. The addresses of the 8 inputs can also be assigned freely with the installation software SIENNA Professional. The top-lying socket board with 9 strands with wire-end sleeves is plugged. 8 control inputs with internal extra-low voltage.
