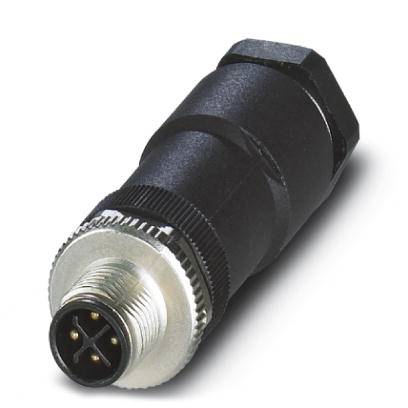

Plug-in connector SACC-M12MSS-3PECON-PG11-M 1404641 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
Customisable
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Type
SACC-M12MSS-3PECON-PG11-M
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
630 V AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
1.50 mm²
- Connection
Screw terminal
- Thread type connection side
M12
- Thread type (wiring and installation)
PG11
- Coding
S
IP67
- Features
S-codiert
- Seal type
Screw-on
- Manufacturer part #
1404641
- Content
1 pc(s)
- Cable Ø (max.)
10 mm
- Cable Ø up to
8 mm
- Cable Ø range
8 - 10 mm
Other
630 V
FALSE
Other
Other
Other
85-85 °C
V0
Screw connection
Gold
III
3
Straight
1.5-1.5 mm²
FALSE
12 A
100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 586450 Plug-in connector SACC-M12MSS-3PECON-PG11-M 1404641 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586450 Plug-in connector SACC-M12MSS-3PECON-PG11-M 1404641 Phoenix Contact
Description
Plug-in connector, 4-position, Plug straightLink:M12, S-coded, Screw connection, Knurl material: Zinc die-cast, nickel-plated, Cable gland Pg11, External cable diameter 8 mm ... 10 mm
