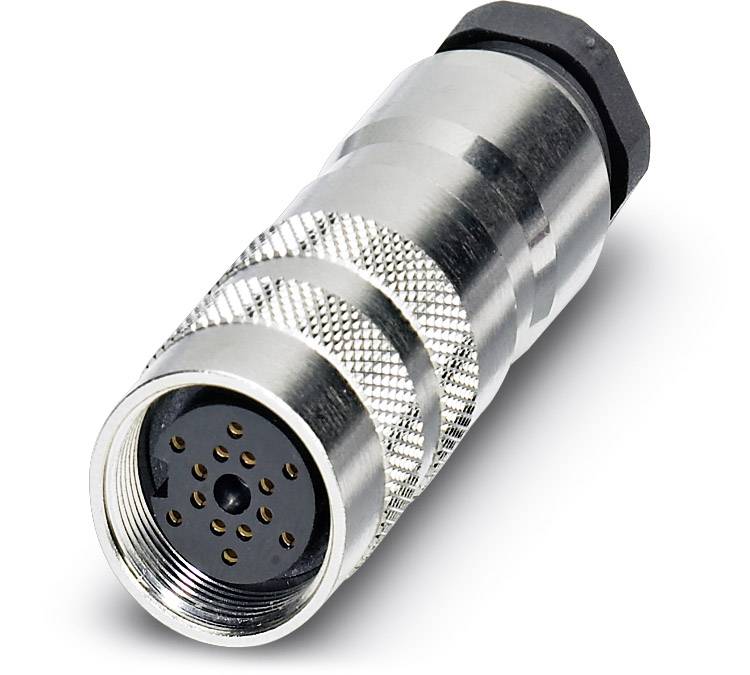

Plug-in connector SACC-M16FS-14CON-M 1500554 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
Customisable
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
14-day return policy included
Technical specifications
- Type
SACC-M16FS-14CON-M
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
Customisable
- No. of pins
14
- Nominal voltage
60 V
- Connector cross-section (max.)
0.25 mm²
- Connection
Soldering
- Thread type connection side
M16
- Thread type (wiring and installation)
M16
IP67
- Manufacturer part #
1500554
- Content
1 pc(s)
- Cable Ø (max.)
8.0 mm
- Cable Ø up to
6.0 mm
- Cable Ø range
6.0 - 8.0 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718176 Plug-in connector SACC-M16FS-14CON-M 1500554 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718176 Plug-in connector SACC-M16FS-14CON-M 1500554 Phoenix Contact
Description
M16 socket, 14-pos., with solder connection, freely configurable, straight, for a 6.0 mm conductor diameter ... 8.0 mm
