Plug-in connector SACC-MINMR-3CON-PG 9 1521465 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, right angle
Connector standard
Sensor connector
Connection side A
7/8" plug, right angle
Connection side B
Customisable
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Type
SACC-MINMR-3CON-PG 9
- Product type
Sensor/actuator connector
- Connector type
Plug, right angle
- Connector standard
Sensor connector
- Connection side A
7/8" plug, right angle
- Connection side B
Customisable
- No. of pins
3
- Nominal voltage
300 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
1.50 mm²
- Connection
Screw terminal
- Thread type connection side
7/8"
- Thread type (wiring and installation)
PG9
- Coding
A
IP67
- Seal type
Screw-on
- Manufacturer part #
1521465
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 8 mm
Other
300 V
FALSE
Other
Other
Other
85-85 °C
HB
Screw connection
Gold
III
3
Angled
1.5-1.5 mm²
FALSE
12 A
100
Documents & Downloads
Datasheet
Datasheet 719621 Plug-in connector SACC-MINMR-3CON-PG 9 1521465 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719621 Plug-in connector SACC-MINMR-3CON-PG 9 1521465 Phoenix Contact
Description

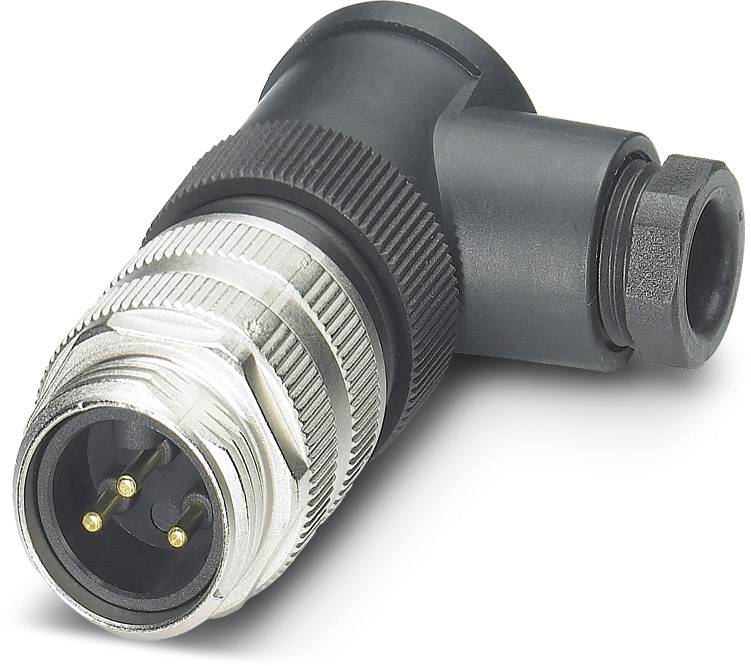

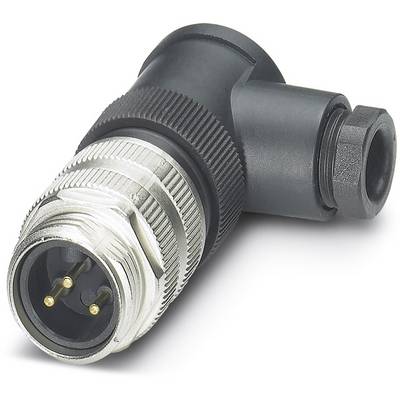

Sensor/actuator connector, male, angled, 3-pos., 7/8", screw connection, metal knurl, cable screw connection Pg9
