Plug-in connector SACC-MINMS-5CON-PG13 1521371 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
7/8" plug, straight
Connection side B
Customisable
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
14-day return policy included
Technical specifications
- Type
SACC-MINMS-5CON-PG13
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
7/8" plug, straight
- Connection side B
Customisable
- No. of pins
5
- Nominal voltage
300 V
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Connector cross-section (max.)
1.50 mm²
- Connection
Screw terminal
- Thread type connection side
7/8"
- Thread type (wiring and installation)
7/8"
- Coding
A
IP67
- Seal type
Screw-on
- Manufacturer part #
1521371
- Content
1 pc(s)
- Cable Ø (max.)
12 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 12 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 584791 Plug-in connector SACC-MINMS-5CON-PG13 1521371 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 584791 Plug-in connector SACC-MINMS-5CON-PG13 1521371 Phoenix Contact
Description

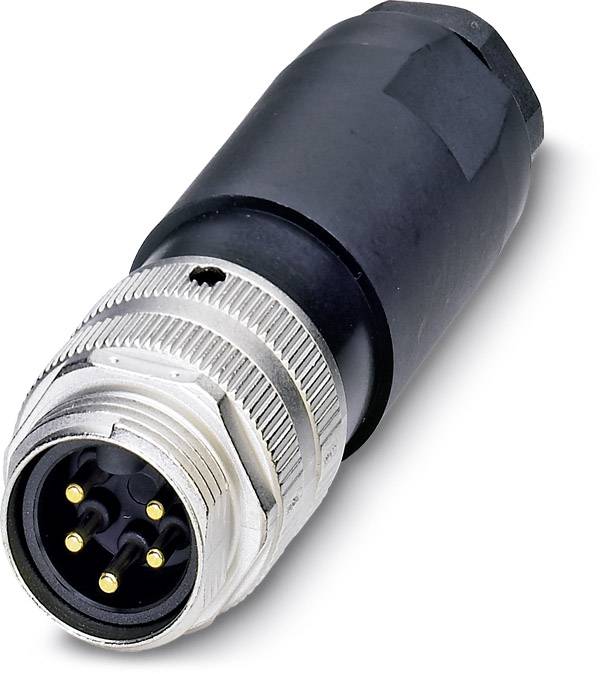

Sensor/actuator connector, male, straight, 5-pos., 7-8", screw connection, metal knurl, cable screw connection Pg13
