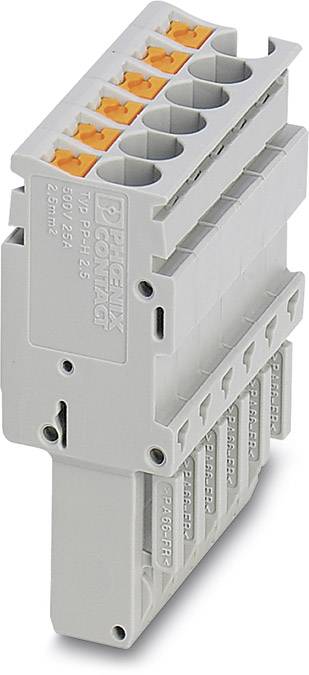

Plug PP-H 2,5/ 2 3209879 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Factory colour
Grey
AWG max.
14
AWG (min.)
26
Stripping length (max.)
10 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.48 / piece)
€ 73.94
plus VAT.
14-day return policy included
Highlights & Details
Plug PP-H 2,5/ 2
- PP-H 2.5/ 2
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Package
- Factory colour
Grey
- AWG max.
14
- AWG (min.)
26
- Stripping length (max.)
10 mm
- Connection
Quick-connect
- Connector colour
Grey
- Manufacturer part #
3209879
- Industrial packaging
Yes
- Content
50 pc(s)
- Clamp width
10.3 mm
- Material
Polyamide
- Nominal voltage
500 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Number of pins
2
- Width
5.20 mm
- Type
PP-H 2,5/ 2
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Insulation
PA
- Insulation class
I
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566371 Plug PP-H 2,5/ 2 3209879 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566371 Plug PP-H 2,5/ 2 3209879 Phoenix Contact
Description
Plug, Connection method: Push-in connection, Number of positions: 2, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 10.4 mm, Height: 39 mm, Color: gray
