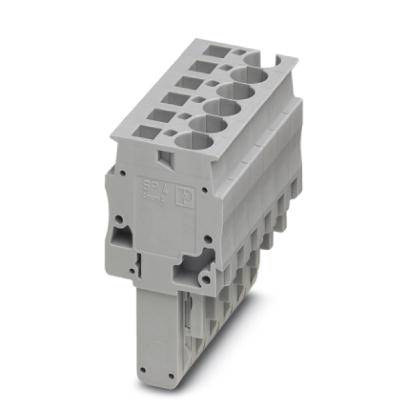

Plug SP 4/1 GNYE 3061046 Phoenix Contact
EAN:
Part number:
Item no:
Factory colour
Green
Yellow
AWG max.
12
AWG (min.)
28
Stripping length (max.)
10 mm
Connection
Pull spring
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.18 / piece)
€ 109.24
plus VAT.
14-day return policy included
Highlights & Details
Plug SP 4/1 GNYE
- SP 4/1 GNYE
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Factory colour
Green
Yellow
- AWG max.
12
- AWG (min.)
28
- Stripping length (max.)
10 mm
- Connection
Pull spring
- Manufacturer part #
3061046
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
800 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Width
6.20 mm
- Type
SP 4/1 GNYE
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566166 Plug SP 4/1 GNYE 3061046 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566166 Plug SP 4/1 GNYE 3061046 Phoenix Contact
Description
Plug, Connection method: Spring-cage connection, Number of positions: 1, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Height: 41.5 mm, Color: green-yellow
