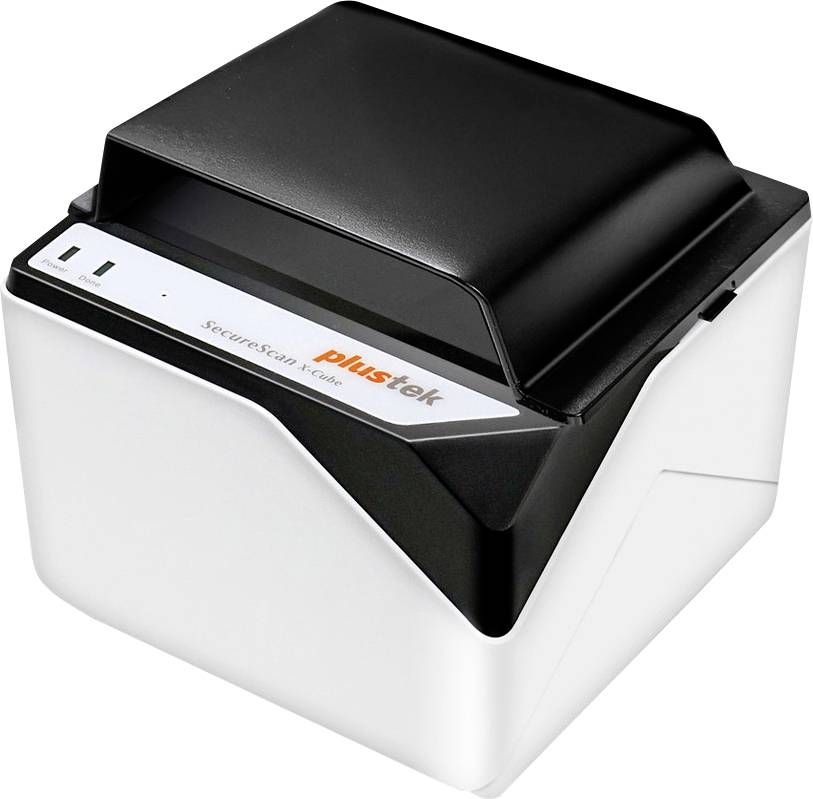

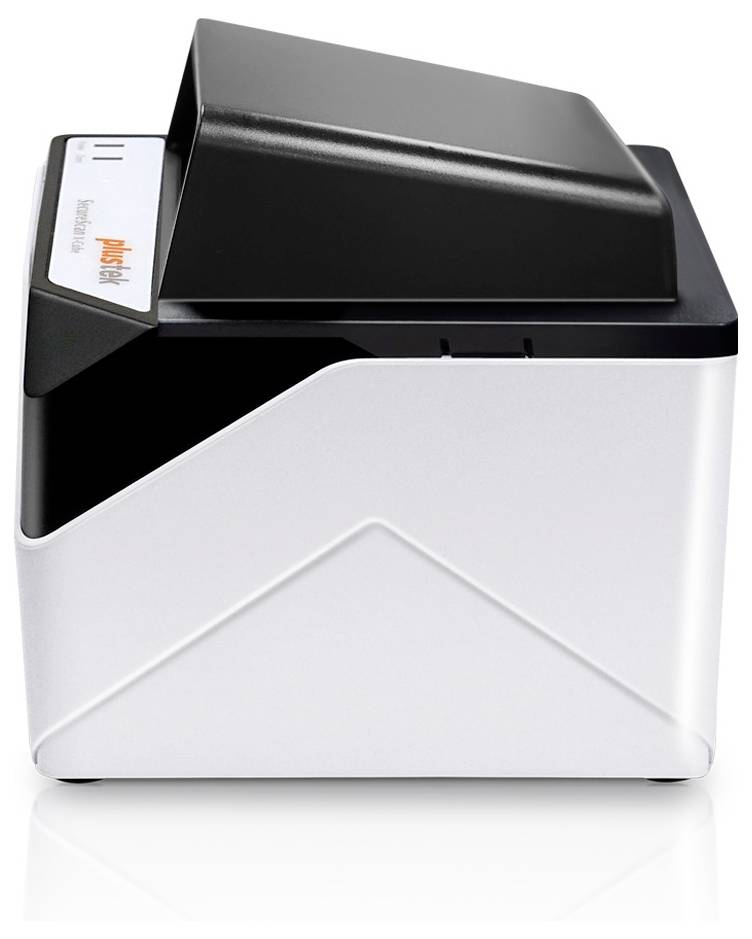

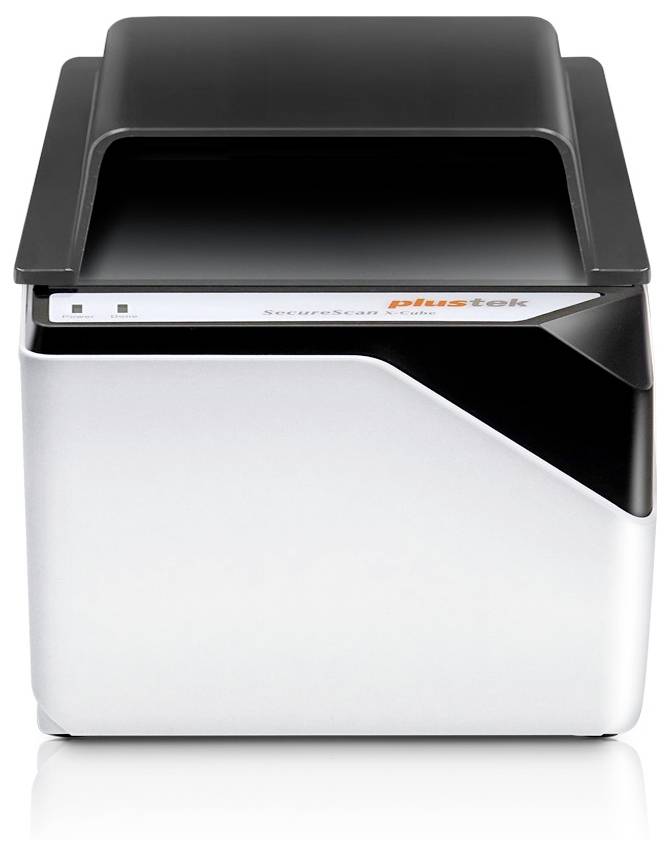

Plustek SecureScan X-Cube 1000 Document scanner 500 x 500 dpi USB A (USB 2.0)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
Only 1 Piece(s) available
Highlights & Details
SecureScan X-Cube 1000 Compact and powerful scanner for identity cards and barcodes
- The Plustek SecureScan X-Cube 1000 is ergonomically designed to facilitate data acquisition and smooth integration into desktop workflows and kiosks. The SecureScan X-Cube 1000 accelerates identity recognition and provides accurate data and high-quality images.
- Cross-platform compatibility - compatible with Windows, Linux, Android and Web API for easy integration with existing systems.
- Complete SDK Toolkit - Includes APIs for image acquisition, data transfer, and device control, enabling rapid deployment and customization.
- Hardware-level control - Get access to complete command sets for precise control and optimized performance.
- Security & Customization - Digital signs with flexible licensing options to protect business and end users.
Technical specifications
- Triple light source (white LED, infrared LED, UV LED)
- Non-contact/automatic detection (single auto detect)
- ICAO Doc 9303 TD1 compliance
- MRZ & QR code detection
- USB-powered bus-Power operation
- SDK support
- Power supply: USB 5V / 0.5A (no external power supply required)
- Product type
Document scanner
- Scan function
Documents
Plastic cards
Calling cards
- Optical resolution
500 x 500 dpi
- Scan area width (min.)
88 mm
- Scan area (max.)
66 mm
- Sensor type
HD CMOS
- Interfaces
USB A (USB 2.0)
- Duplex unit
No
- Traversing light unit
No
- Feeder
No
- Flatbed unit
Yes
- Width
107 mm
- Height
84 mm
- Depth
107.5 mm
- Dim
(W x H x D) 107 x 84 x 107.5 mm
- Weight
0.42 kg
- Factory colour
White
Black
Documents & Downloads
Datasheet
Datasheet 3836279 Plustek SecureScan X-Cube 1000 Document scanner 500 x 500 dpi USB A (USB 2.0)
User & Safety Instructions
User & Safety Instructions 3836279 Plustek SecureScan X-Cube 1000 Document scanner 500 x 500 dpi USB A (USB 2.0)
Description

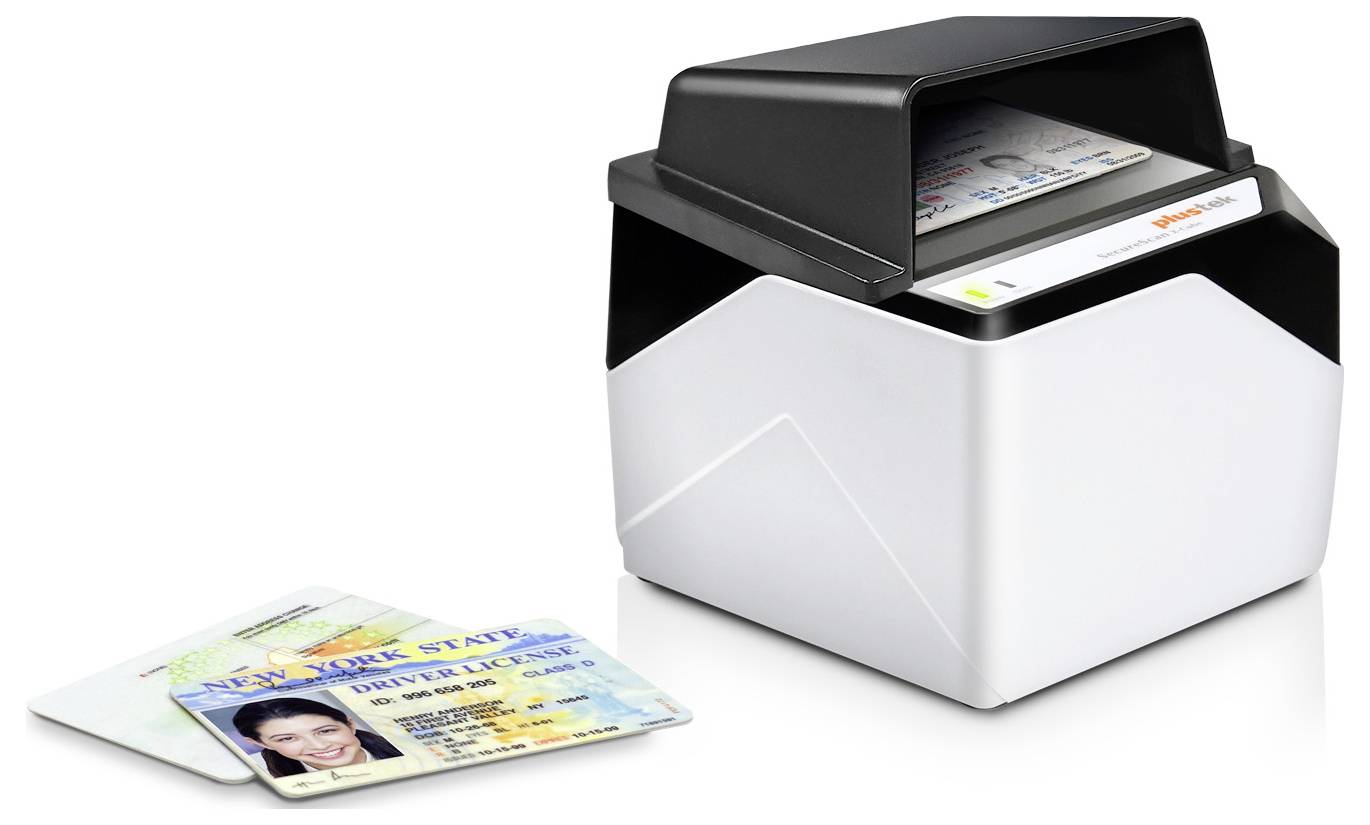

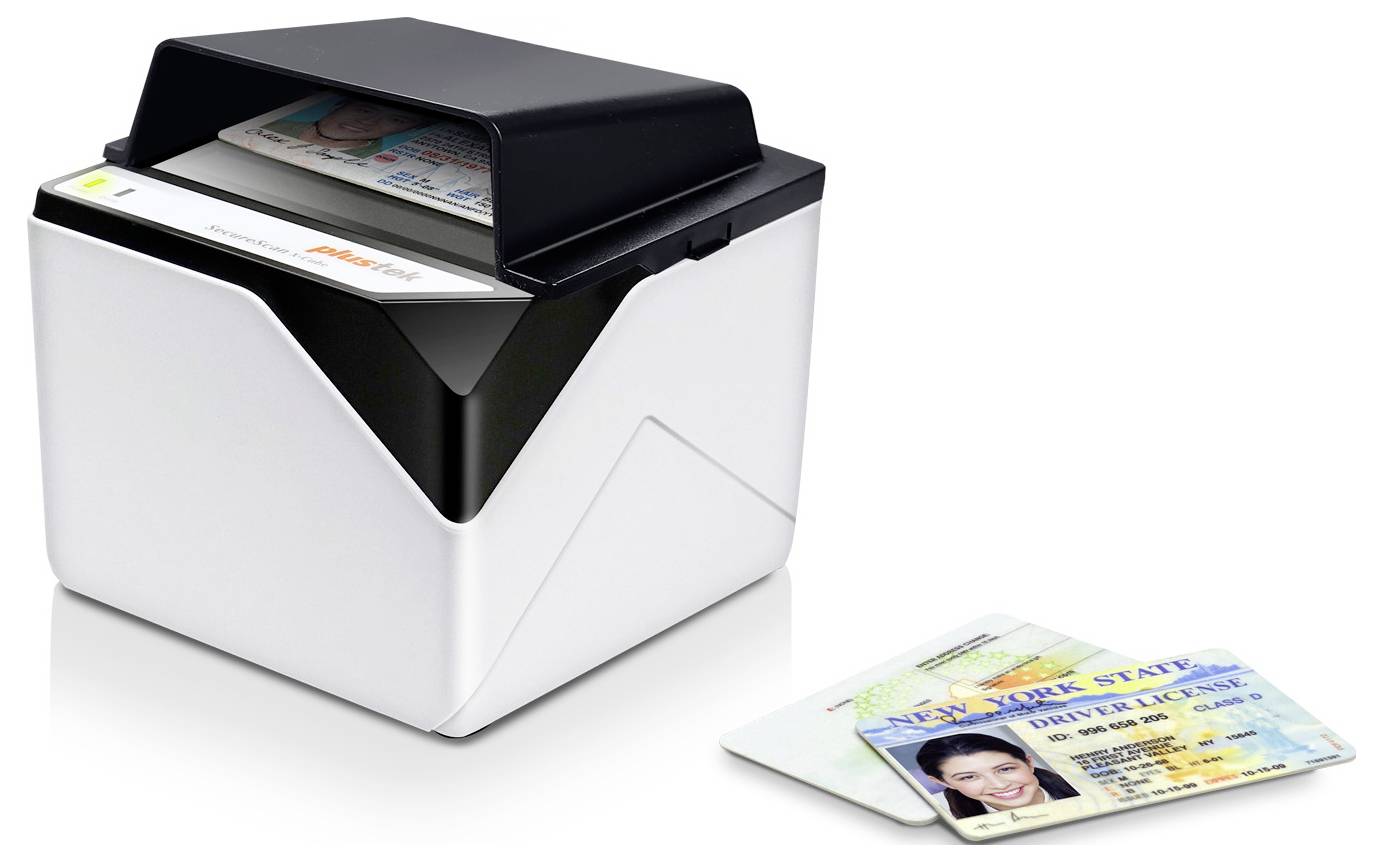

Do not let its size fool you – the SecureScan X-Cube 1000 is a powerful ID-scanner. It provides automatic image acquisition, VIZ, MRZ and 1D/2D barcode reading of printed documents. It also captures images of all types of ID cards, including health insurance cards, membership cards and all standard ID cards.
This text is machine translated.
This text is machine translated.
Features
- Image sensor CMOS
- Lamp white LED / IR LED / UV LED
- Optical resolution 5 megapixels
- Focus Fixed
- Scanning method color: 24-bit input
- Function buttons for auto detection sensors
- Scanning range (W x L) Maximum 88 x 54 mm
- Supported paper size (B x L) Maximum 88 x 54 mm
- Power supply USB-current 5V DC
- Connection USB 2.0 type mini-B
- Operating system Windows 7 / 8 / 8.1 / 10 / 11
Scope of delivery
- Scanner
- USB cable
- Accompanying software Plustek SecureScan
- Plustek secure scan manager
Hints
Scan speed (if stated) refers to A4-sized documents.
System requirements
- LINUX for System Integrators. Please contact your local sales department: sales@plustek.com (SDK only)
System requirements
2.0 GHz CPU or higher[1]
[1]Windows recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher
At least 4 GB RAM (8 GB or more recommended)
6 GB hard disk storage for the program installation
1 free USB 2.0 port
Display dimensions of 1024 x 768 or higher
Included software
Plustek secure scan
Plustek secure scan manager
