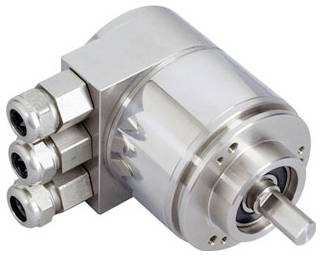

Posital Fraba Absolute Rotary encoder 1 pc(s) OCD-DPC1B-1213-C10W-H3P Clamping flange Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
OCD-DPC1B-1213-C10W-H3P
- Model
Absolute
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
Connector cap
Cable gland
Cable gland
Cable gland
- Orientation (connectors)
Radial
- Features
one-sided shaft flattening
- Impulses per cycle (max.)
8192
- Sleeve type
Clamping flange
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
20 mm
- Shaft Ø
10 mm
- Material (sleeve)
Stainless steel V4A
- Material (shaft)
Stainless steel V4A
- Enclosure material
Stainless steel V4A
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP66/IP67
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
