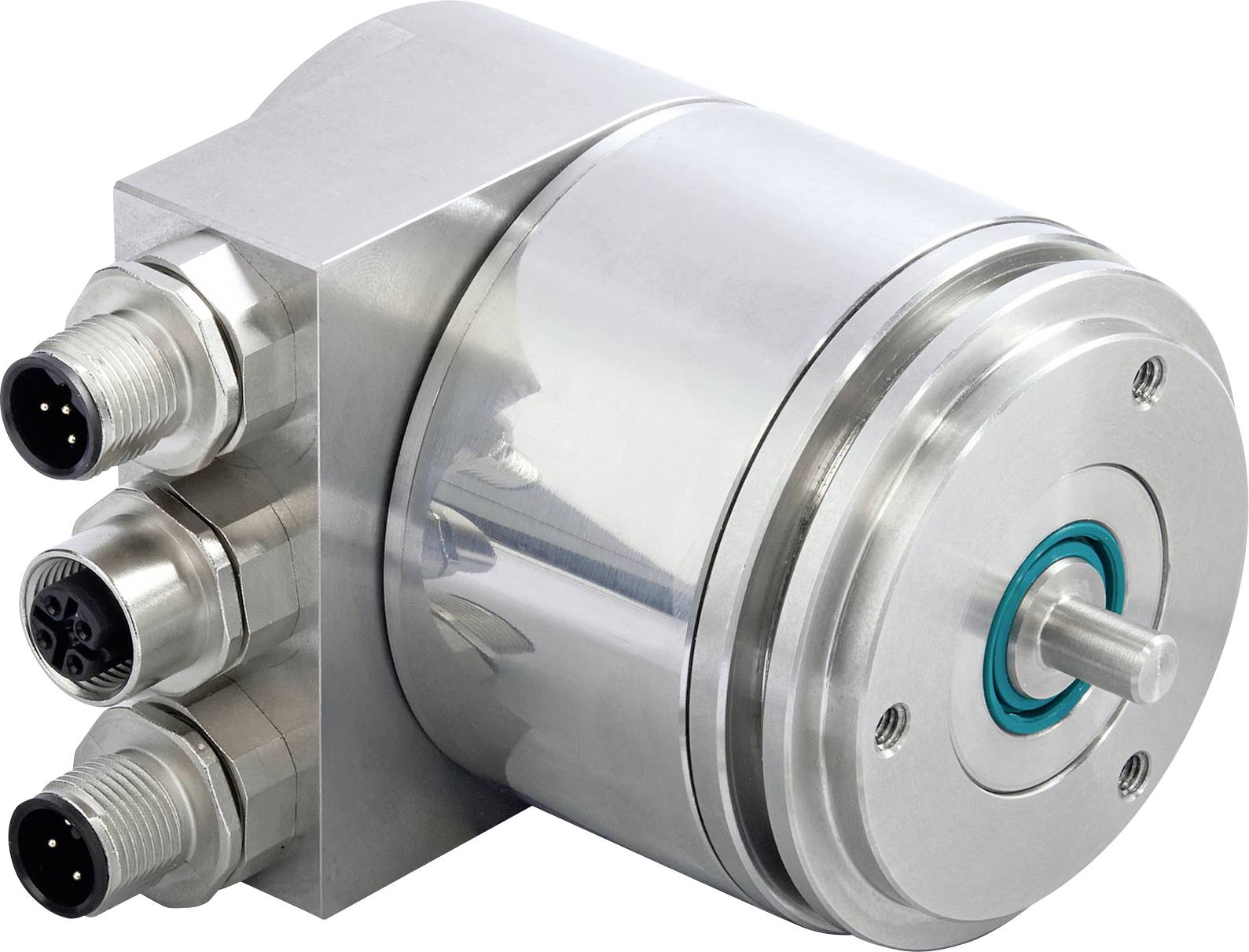

Posital Fraba Absolute Rotary encoder 1 pc(s) OCD-EC00B-0016-S06V-PRM Synchro flange Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Absolute
Max. operating voltage
30 V DC
Connector
M12 plug (4-pin, A coded)
M12 socket (4-pin, D coded)
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
OCD-EC00B-0016-S06V-PRM
- Model
Absolute
- Max. operating voltage
30 V DC
- Operating voltage
30 V DC (max)
- Connector
M12 plug (4-pin, A coded)
M12 socket (4-pin, D coded)
- Orientation (connectors)
Radial
- Impulses per cycle (max.)
65536
- Sleeve type
Synchro flange
- Shaft type
Solid shaft
- Shaft depth
10 mm
- Shaft Ø
6 mm
- Material (sleeve)
Stainless steel V2A
- Material (shaft)
Stainless steel V2A
- Enclosure material
Stainless steel V2A
IP66/IP67
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
