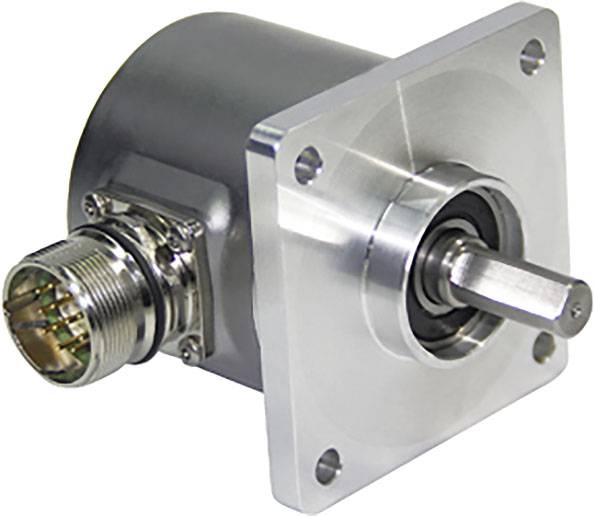

Posital Fraba Absolute Rotary encoder 1 pc(s) OCD-S3B1G-1212-9A70-5RW Square bracket
Part number:
Item no:
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
4.5 V DC
Max. operating voltage
30 V DC
Connector
Cable, open end
Technical specifications
- Product type
Rotary encoder
- Type
OCD-S3B1G-1212-9A70-5RW
- Model
Absolute
- Min. operating voltage
4.5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.5 - 30 V DC
- Connector
Cable, open end
- Cable length
5 m
- Orientation (connectors)
Radial
- Impulses per cycle (max.)
4096
- Sleeve type
Square bracket
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
20 mm
- Shaft Ø
9.52 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Enclosure material
Steel
- Min. temperature
-30 °C
- Max. temperature
70 °C
IP65
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
