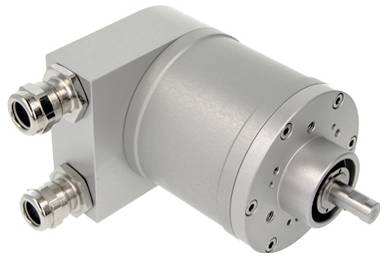

Posital Fraba Absolute Rotary encoder 1 pc(s) OCE-DPC1B-1413-F120-HFZ Clamping flange Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
OCE-DPC1B-1413-F120-HFZ
- Model
Absolute
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
Connector cap
- Orientation (connectors)
Radial
- Features
Incl. 2x filler plug
- Impulses per cycle (max.)
8192
- Sleeve type
Clamping flange
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
20 mm
- Shaft Ø
12 mm
- Material (sleeve)
Aluminium
- Enclosure material
Aluminium
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP66/IP67
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
