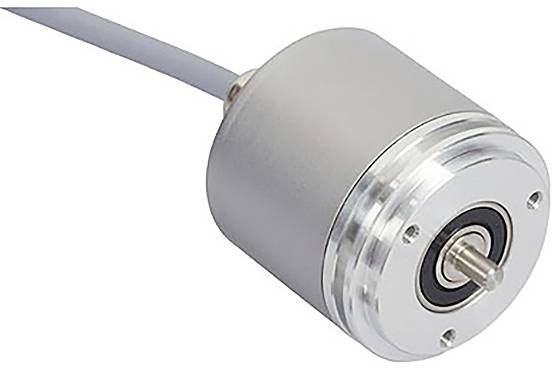

Posital Fraba Absolute Rotary encoder 1 pc(s) OCF-S101B-0812-S060-CAE Synchro flange Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
4.5 V DC
Max. operating voltage
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
OCF-S101B-0812-S060-CAE
- Model
Absolute
- Min. operating voltage
4.5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.5 - 30 V DC
- Connector
Cable, open end
- Cable length
1 m
- Orientation (connectors)
Axial
- Impulses per cycle (max.)
4096
- Sleeve type
Synchro flange
- Shaft type
Solid shaft
- Shaft depth
10 mm
- Shaft Ø
6 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Enclosure material
Steel
- Min. temperature
-30 °C
- Max. temperature
80 °C
IP65
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3650487 Posital Fraba Absolute Rotary encoder 1 pc(s) OCF-S101B-0812-S060-CAE Synchro flange Piece
