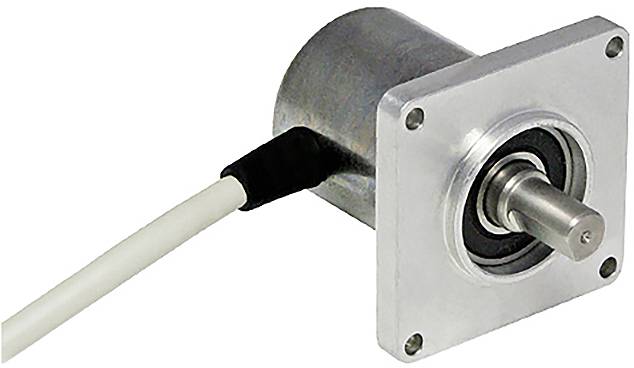

Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPH00-00512-3C4A-5RW Square Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
4.75 V DC
Max. operating voltage
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
UTD-IPH00-00512-3C4A-5RW
- Model
Incremental
- Min. operating voltage
4.75 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.75 - 30 V DC
- Connector
Cable, open end
- Cable length
5 m
- Orientation (connectors)
Radial
- Features
one-sided shaft flattening
- Steps per cycle
512
- Sleeve type
Square
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
16 mm
- Shaft Ø
6.35 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Min. temperature
-30 °C
- Max. temperature
80 °C
IP54
- RoHS-compliant
Yes
- Content
1 pc(s)
