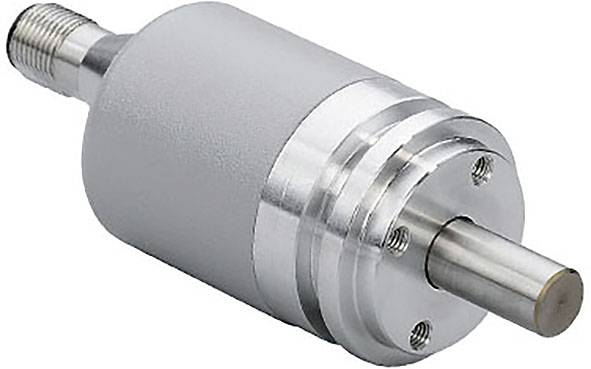

Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPH00-00512-D10D-PAQ Synchro flange
Part number:
Item no:
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
4.75 V DC
Max. operating voltage
30 V DC
Connector
M12 plug (8-pin, A coded)
Technical specifications
- Product type
Rotary encoder
- Type
UTD-IPH00-00512-D10D-PAQ
- Model
Incremental
- Min. operating voltage
4.75 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.75 - 30 V DC
- Connector
M12 plug (8-pin, A coded)
- Orientation (connectors)
Axial
- Impulses per cycle (max.)
512
- Sleeve type
Synchro flange
- Shaft type
Solid shaft
- Shaft depth
20 mm
- Shaft Ø
10 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V4A (tempered)
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68/IP69K
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3485523 Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPH00-00512-D10D-PAQ Synchro flange
