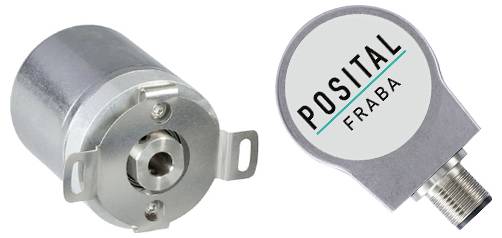

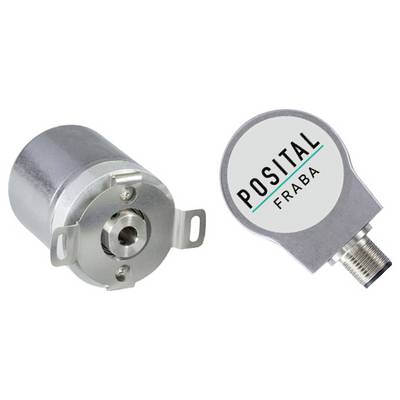

Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPT0Z-02048-ACT0-PRM Blind hollow Piece
Part number:
Item no:
Packaging type
Piece
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
4.75 V DC
Max. operating voltage
30 V DC
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
UTD-IPT0Z-02048-ACT0-PRM
- Model
Incremental
- Min. operating voltage
4.75 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.75 - 30 V DC
- Connector
M12 plug (5-pin, A coded)
- Orientation (connectors)
Radial
- Features
shaft with locking screw
- Impulses per cycle (max.)
2048
- Sleeve type
Blind hollow
- Shaft type
Blind hole hollow shaft
- Shaft depth
18 mm
- Shaft Ø
12 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP65
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3520053 Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPT0Z-02048-ACT0-PRM Blind hollow Piece
