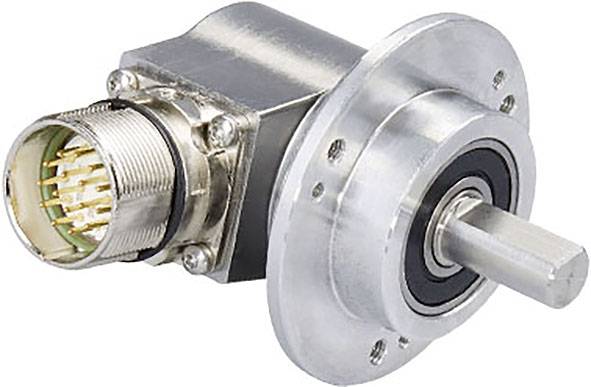

Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPT0Z-08192-M100-PRD Clamping flange
Part number:
Item no:
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
4.75 V DC
Max. operating voltage
30 V DC
Connector
MS14 plug (6-pin)
Technical specifications
- Product type
Rotary encoder
- Type
UTD-IPT0Z-08192-M100-PRD
- Model
Incremental
- Min. operating voltage
4.75 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.75 - 30 V DC
- Interfaces
Incremental
- Connector
MS14 plug (6-pin)
- Orientation (connectors)
Radial
- Features
one-sided shaft flattening
- Steps per cycle
8192
- Impulses per cycle (max.)
8192
- Sleeve type
Clamping flange
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
20 mm
- Shaft Ø
10 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP65
- RoHS-compliant
Yes
- Content
1 pc(s)
