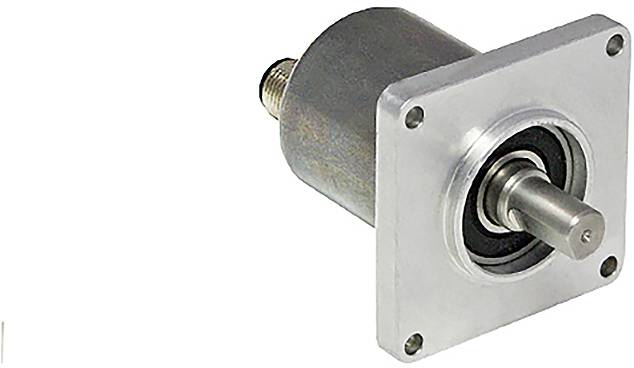

Posital Fraba Incremental Rotary encoder 1 pc(s) UTD-IPT0Z-16384-3A7S-PAM Square
Part number:
Item no:
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
4.75 V DC
Max. operating voltage
30 V DC
Connector
M12 plug (5-pin, A coded)
Technical specifications
- Product type
Rotary encoder
- Type
UTD-IPT0Z-16384-3A7S-PAM
- Model
Incremental
- Min. operating voltage
4.75 V DC
- Max. operating voltage
30 V DC
- Operating voltage
4.75 - 30 V DC
- Connector
M12 plug (5-pin, A coded)
- Orientation (connectors)
Axial
- Features
one-sided shaft flattening
- Impulses per cycle (max.)
16384
- Sleeve type
Square
- Shaft type
Solid shaft
Flat on one end
- Shaft depth
16 mm
- Shaft Ø
9.52 mm
- Material (sleeve)
Aluminium
- Material (shaft)
Stainless steel V2A
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP66/IP67
- RoHS-compliant
Yes
- Content
1 pc(s)
