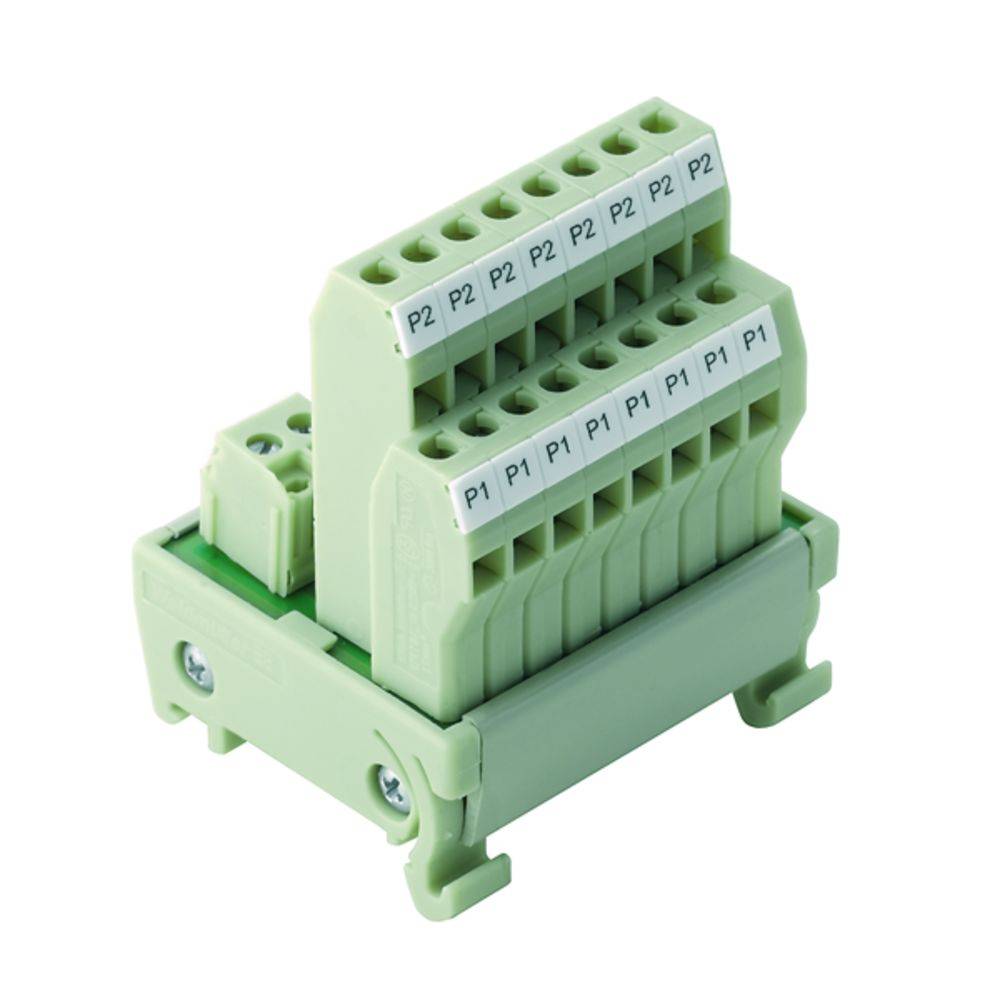

Potential Distribution RS VERT8 LPK2 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Stripping length (max.)
13 mm
Min. stripping length
6 mm
Dim
(L x W x H) 51.5 x 45 x 64 mm
Connector (field)
Screws
Datasheet (PDF)
Highlights & Details
Potential Distribution
- RS VERT 8 LPK 2
Technical specifications
- Rated insulation voltage< 50 V AC
- Over voltage category III
- Pollution level: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- Core cross section (min.) AWG 26
- Conductor cross-section max. AWG: AWG 12
- Tightening torque, min.: 0.5 Nm
- Tightening torque, max. 0.6 Nm
- Product type
Transfer module
- Stripping length (max.)
13 mm
- Min. stripping length
6 mm
- Dim
(L x W x H) 51.5 x 45 x 64 mm
- Connector (field)
Screws
- Connector (control)
Screws
- Type
Interface, RS VERT, 2 P, screw connection
- Operating current
10 A
- Weight
67.98 g
- Content
1 pc(s)
- Width
45 mm
- Height
64 mm
- Length
51.5 mm
- RoHS-compliant
Yes
- Series
RS VERT
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Features
+ 2 bonding bars
- Type
RS VERT 8 LPK 2
DIN rail (top hat rail) 35 mm
52
45 mm
64 mm
30 V
Screw connection
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 257957 Potential Distribution RS VERT8 LPK2 Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 257957 Potential Distribution RS VERT8 LPK2 Weidmüller Content: 1 pc(s)
Description
Potential distribution. Interface, RS VERT, 2P, screw connection.
